Catalogue of elements for heating of liquids

Catalogue of elements for heating of liquids

Download catalogue (PDF)

Heating elements for direct water heating in boilers

Flanged heating elements for industrial water heaters

Heating elements for washing machines, dishwashers and similar appliances

Heating elements for heating oils and fuels

Heating elements for special applications (honey, indirect heating, molds)

Additional drawings

Heating elements for direct water heating in boilers

Type 01122

Type 01122

Heating element designed for direct water heating in boilers, electric kettles and similar appliances. Operating pressure 1.0 MPa. The element consists of three U-shaped heating branches secured in a hexagonal head SW 65 (brass flanges — rods brazed) or SW 60 (stainless-steel flanges — rods TIG-welded), with M48 × 2 or G 6/4" thread. The flange is fitted with a cover of IP 54 protection, resistant up to 100 °C or up to 140 °C. The standard version up to 6 kW input can be connected to 230 V or 230/400 V. The standard version of 7.5 kW or higher input can be connected to 400 V or 400/230 V.

The first digit of the type number after the slash specifies the element version regarding the thread, material of the heating branches and the flange (see the table).

Versions table (Type 01122/. . . 0)
Type designation W V heated length (mm) in stock
1122/0010 1,5 kW 230 V 270 No
1122/0011 1,5 kW 230 V 150 Yes
1122/4011 1,5 kW 230 V 150 Yes
1122/4012 1,5 kW 230 V 290 No
1122/0020 2 kW 230 V 178 Yes
1122/4020 2 kW 230 V 178 Yes
1122/4022 2 kW 230 V 340 No
1122/0030 2,4 kW 230 V 203 Yes
1122/4030 2,4 kW 230 V 203 Yes
1122/4032 2,4 kW 230 V 360 No
1122/0040 3 kW 230 V 240 Yes
1122/4040 3 kW 230 V 240 Yes
1122/4043 3 kW 230 V 390 No
1122/0050 4 kW 230 V 303 Yes
1122/4050 4 kW 230 V 303 Yes
1122/4052 4 kW 230 V 420 No
1122/0060 4,5 kW 230 V 333 Yes
1122/4060 4,5 kW 230 V 333 Yes
1122/4062 4,5 kW 230 V 500 No
1122/0065 5 kW 230 V 365 No
1122/0070 6 kW 230 V 428 Yes
1122/4070 6 kW 230 V 428 Yes
1122/4072 6 kW 230 V 520 No
1122/0080 7,5 kW 400 V 520 Yes
1122/4080 7,5 kW 400 V 520 Yes
1122/2082 7,5 kW 400 V 610 No
1122/4082 7,5 kW 400 V 610 No
1122/0090 9 kW 400 V 615 Yes
1122/4092 9 kW 400 V 650 No
1122/0100 10 kW 400 V 700 No
1122/0110 12 kW 400 V 800 No
Element version — thread, material of heating branches and flange
Version thread rod material flange material
0 M48 x 2 Cu nickel-plated brass
1 G 6/4" Cu nickel-plated brass
2 M48 x 2 Cu brass
3 G 6/4" Cu brass
4 M48 x 2 stainless steel brass
5 G 6/4" stainless steel brass
6 M48 x 2 stainless steel stainless steel
7 G 6/4" stainless steel stainless steel

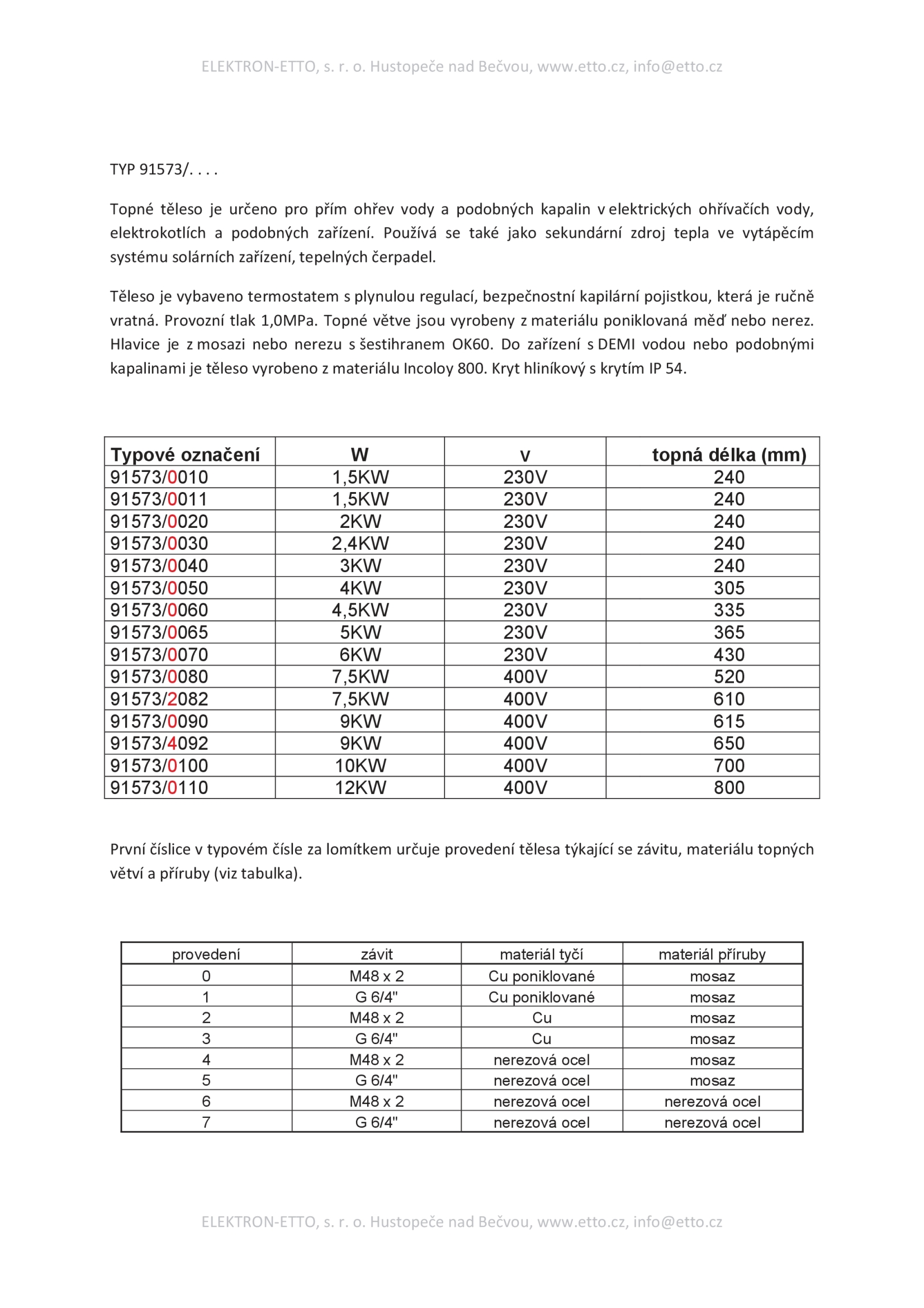

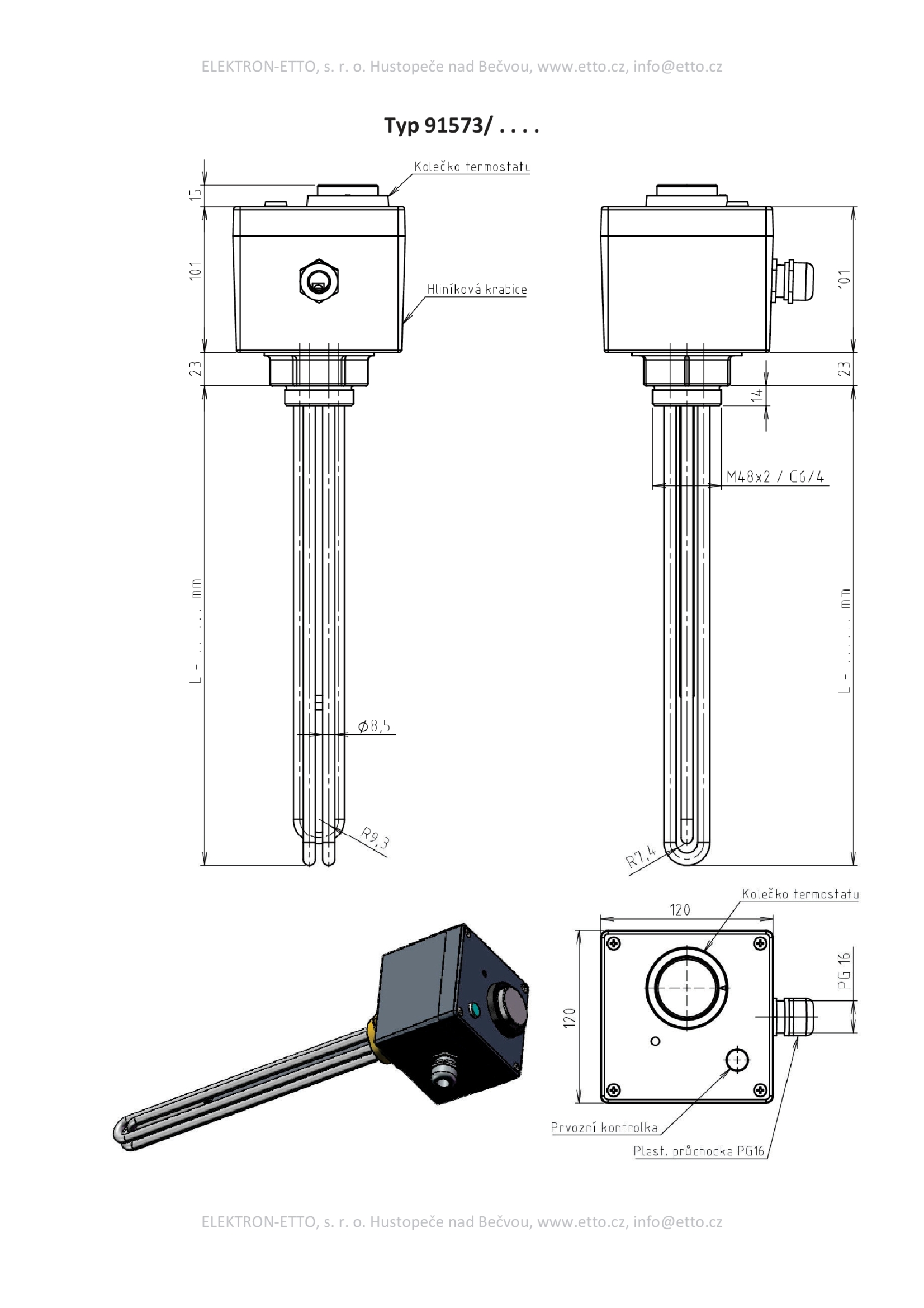

Type 91573

Type 91573

The heating element is designed for direct heating of water and similar liquids in electric water heaters, electric kettles and similar appliances. It is also used as a secondary heat source in heating systems of solar installations and heat pumps. The element is equipped with a thermostat with stepless control and a manually resettable capillary safety cut-out. Operating pressure 1.0 MPa. The heating branches are made of nickel-plated copper or stainless steel. The head is made of brass or stainless steel with a hexagonal SW 60. For appliances with DEMI water or similar liquids, the element is made of Incoloy 800. Aluminium cover with IP 54 protection.

The first digit of the type number after the slash specifies the element version regarding the thread, material of the heating branches and the flange (see the table).

Versions table (Type 91573/. . . 0)
Type designation W V heated length (mm)
91573/0010 1,5 kW 230 V 240
91573/0011 1,5 kW 230 V 240
91573/0020 2 kW 230 V 240
91573/0030 2,4 kW 230 V 240
91573/0040 3 kW 230 V 240
91573/0050 4 kW 230 V 305
91573/0060 4,5 kW 230 V 335
91573/0065 5 kW 230 V 365
91573/0070 6 kW 230 V 430
91573/0080 7,5 kW 400 V 520
91573/2082 7,5 kW 400 V 610
91573/0090 9 kW 400 V 615
91573/4092 9 kW 400 V 650
91573/0100 10 kW 400 V 700
91573/0110 12 kW 400 V 800
Element version — thread, material of heating branches and flange
Version thread rod material flange material
0 M48 x 2 Cu nickel-plated brass
1 G 6/4" Cu nickel-plated brass
2 M48 x 2 Cu brass
3 G 6/4" Cu brass
4 M48 x 2 stainless steel brass
5 G 6/4" stainless steel brass
6 M48 x 2 stainless steel stainless steel
7 G 6/4" stainless steel stainless steel

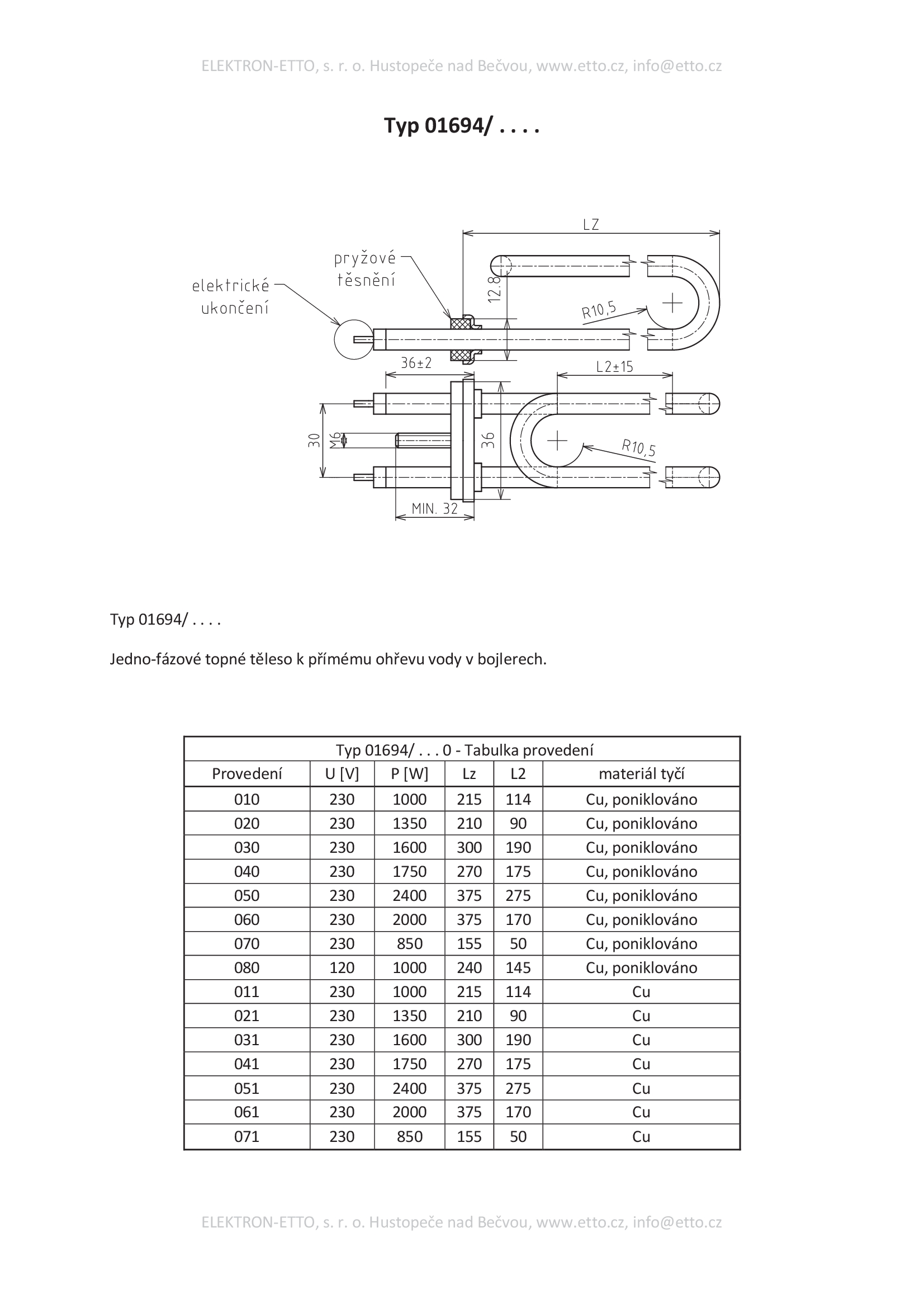

Type 01694

Type 01694

Single-phase heating element for direct water heating in boilers.

Versions table (Type 01694/. . . 0)
Version U [V] P [W] Lz L2 rod material
010 230 1000 215 114 Cu, nickel-plated
020 230 1350 210 90 Cu, nickel-plated
030 230 1600 300 190 Cu, nickel-plated
040 230 1750 270 175 Cu, nickel-plated
050 230 2400 375 275 Cu, nickel-plated
060 230 2000 375 170 Cu, nickel-plated
070 230 850 155 50 Cu, nickel-plated
080 120 1000 240 145 Cu, nickel-plated
011 230 1000 215 114 Cu
021 230 1350 210 90 Cu
031 230 1600 300 190 Cu
041 230 1750 270 175 Cu
051 230 2400 375 275 Cu
061 230 2000 375 170 Cu
071 230 850 155 50 Cu

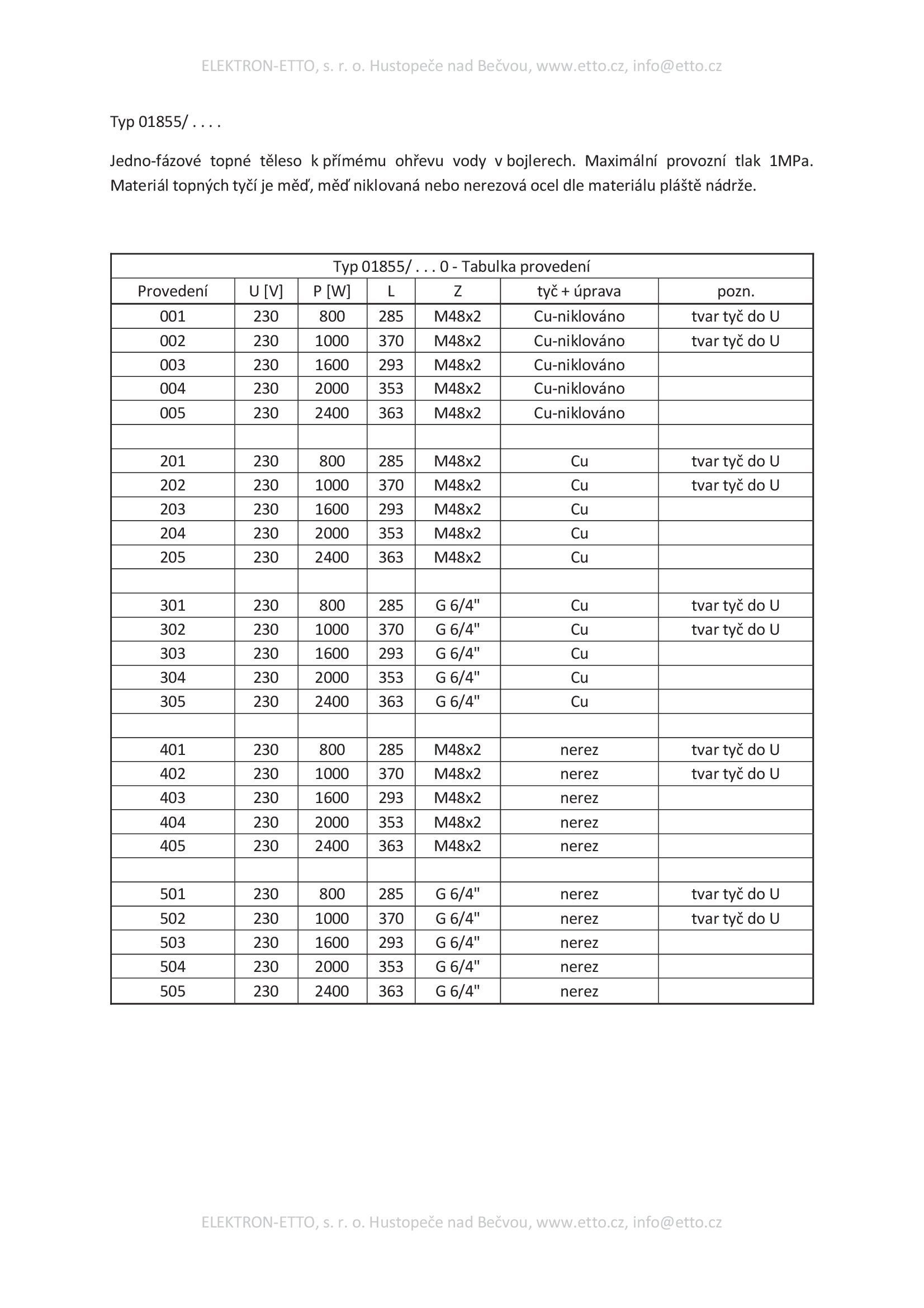

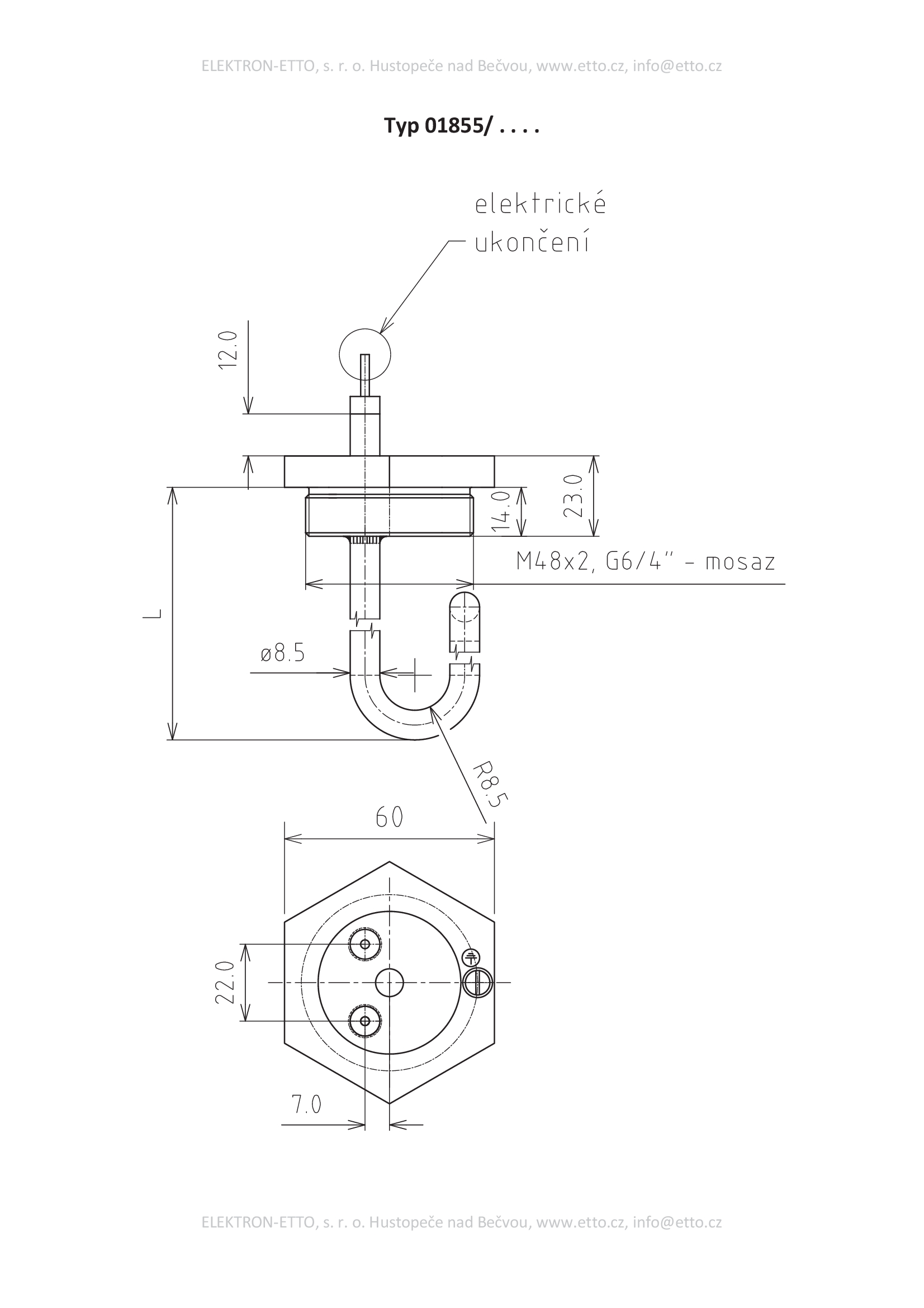

Type 01855

Type 01855

Single-phase heating element for direct water heating in boilers. Maximum operating pressure 1 MPa. The material of the heating rods is copper, nickel-plated copper or stainless steel depending on the material of the tank shell.

Versions table (Type 01855/. . . 0)
Version U [V] P [W] L Z rod + finish note
001 230 800 285 M48x2 Cu nickel-plated U-shaped rod
002 230 1000 370 M48x2 Cu nickel-plated U-shaped rod
003 230 1600 293 M48x2 Cu nickel-plated
004 230 2000 353 M48x2 Cu nickel-plated
005 230 2400 363 M48x2 Cu nickel-plated
201 230 800 285 M48x2 Cu U-shaped rod
202 230 1000 370 M48x2 Cu U-shaped rod
203 230 1600 293 M48x2 Cu
204 230 2000 353 M48x2 Cu
205 230 2400 363 M48x2 Cu
301 230 800 285 G 6/4" Cu U-shaped rod
302 230 1000 370 G 6/4" Cu U-shaped rod
303 230 1600 293 G 6/4" Cu
304 230 2000 353 G 6/4" Cu
305 230 2400 363 G 6/4" Cu
401 230 800 285 M48x2 stainless U-shaped rod
402 230 1000 370 M48x2 stainless U-shaped rod
403 230 1600 293 M48x2 stainless
404 230 2000 353 M48x2 stainless
405 230 2400 363 M48x2 stainless
501 230 800 285 G 6/4" stainless U-shaped rod
502 230 1000 370 G 6/4" stainless U-shaped rod
503 230 1600 293 G 6/4" stainless
504 230 2000 353 G 6/4" stainless
505 230 2400 363 G 6/4" stainless

Flanged heating elements for industrial water heaters

Type 01126

Type 01126

Heating element for direct water heating at an operating pressure up to 0.6 MPa or up to 1 MPa. The material of the heating rods is copper, nickel-plated copper or stainless steel depending on the material of the tank shell. IP 42 protection. Counter-flange see EN 1092-1.

Versions table (Type 01126/. . . 0)
Version U [V] P [W] L [mm] ØD ØD1 S Jt [MPa] no. and size of bolts rod material
001 400V/230 15000 505 260 225 20 0,6 8ks M16x60 Fe/Ni Cu/Ni
002 400V/230 18000 575 260 225 20 0,6 8ks M16x60 Fe/Ni Cu/Ni
003 400V/230 24000 735 260 225 20 0,6 8ks M16x60 Fe/Ni Cu/Ni
004 400V/230 30000 870 260 225 20 0,6 8ks M16x60 Fe/Ni Cu/Ni
0021 400V/230 18000 575 260 225 20 0,6 8ks M16x60 Fe/Ni Cu - untreated
0031 400V/230 24000 735 260 225 20 0,6 8ks M16x60 Fe/Ni Cu - untreated
2010 400V/230 15000 505 280 240 24 1,0 8ks M20x80 Fe/Ni Cu/Ni
2011 400V/230 15000 505 280 240 24 1,0 8ks M20x80 Fe/Ni Cu - untreated
2020 400V/230 18000 575 280 240 24 1,0 8ks M20x80 Fe/Ni Cu/Ni
2030 400V/230 24000 735 280 240 24 1,0 8ks M20x80 Fe/Ni Cu/Ni
2040 400V/230 30000 870 280 240 24 1,0 8ks M20x80 Fe/Ni Cu/Ni
2041 400V/230 30000 870 280 240 24 1,0 8ks M20x80 Fe/Ni Cu - untreated
2042 400V/230 30000 870 260 225 20 0,6 8ks M16x60 Fe/Ni Cu - untreated
2050 400V/230 24000 735 280 240 24 1,0 8ks M20x80 Fe/Ni Cu - untreated
501 400V/230 15000 505 260 225 20 0,6 8ks M16x60 Fe/Ni 17350
502 400V/230 18000 575 260 225 20 0,6 8ks M16x60 Fe/Ni 17350
503 400V/230 24000 735 260 225 20 0,6 8ks M16x60 Fe/Ni 17350
504 400V/230 30000 870 260 225 20 0,6 8ks M16x60 Fe/Ni 17350
7010 400V/230 15000 505 280 240 24 1,0 8ks M20x80 Fe/Ni 17350
7020 400V/230 18000 575 280 240 24 1,0 8ks M20x80 Fe/Ni 17350
7030 400V/230 24000 870 280 240 24 1,0 8ks M20x80 Fe/Ni 17350
7040 400V/230 30000 735 280 240 24 1,0 8ks M20x80 Fe/Ni 17350

Type 01129

Type 01129

Heating element for direct water heating at an operating pressure up to 1 MPa. The material of the heating rods is copper, nickel-plated copper or stainless steel depending on the material of the tank shell. IP 42 protection.

Versions table (Type 01129/. . . 0)
Version U [V] P [W] L [mm] rod material
001 400 7500 505 Cu/Ni
002 400 9000 505 Cu/Ni
003 400 12000 705 Cu/Ni
004 400 15000 805 Cu/Ni
501 400 7500 505 17350
502 400 9000 505 17350
503 400 12000 705 17350
504 400 15000 805 17350
505 500 15000 860 17350

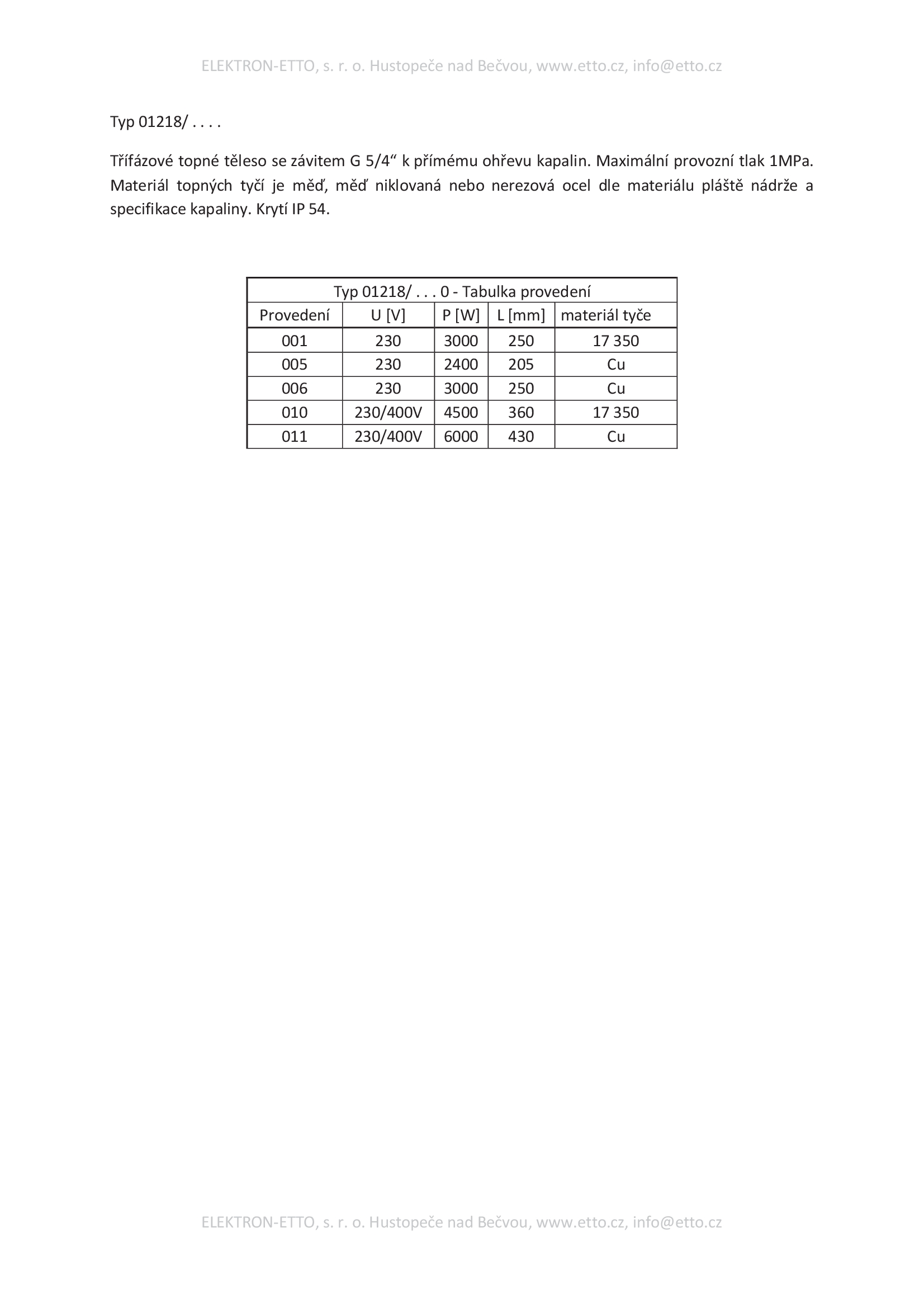

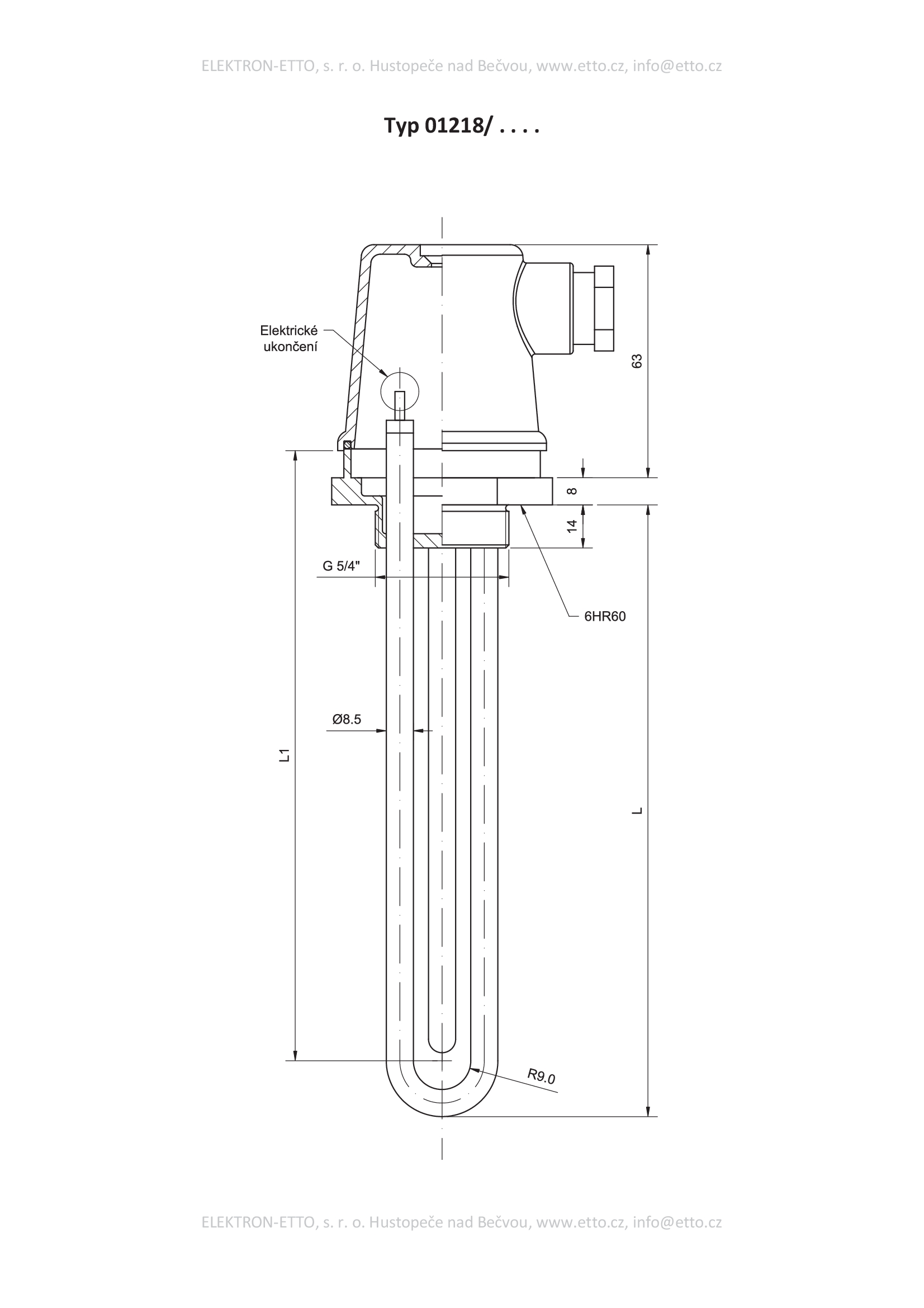

Type 01218

Type 01218

Three-phase heating element with G 5/4" thread for direct heating of liquids. Maximum operating pressure 1 MPa. The material of the heating rods is copper, nickel-plated copper or stainless steel depending on the material of the tank shell and the liquid specification. IP 54 protection.

Versions table (Type 01218/. . . 0)
Version U [V] P [W] L [mm] rod material
001 230 3000 250 17 350
005 230 2400 205 Cu
006 230 3000 250 Cu
010 230/400V 4500 360 17 350
011 230/400V 6000 430 Cu

Heating elements for washing machines, dishwashers and similar appliances

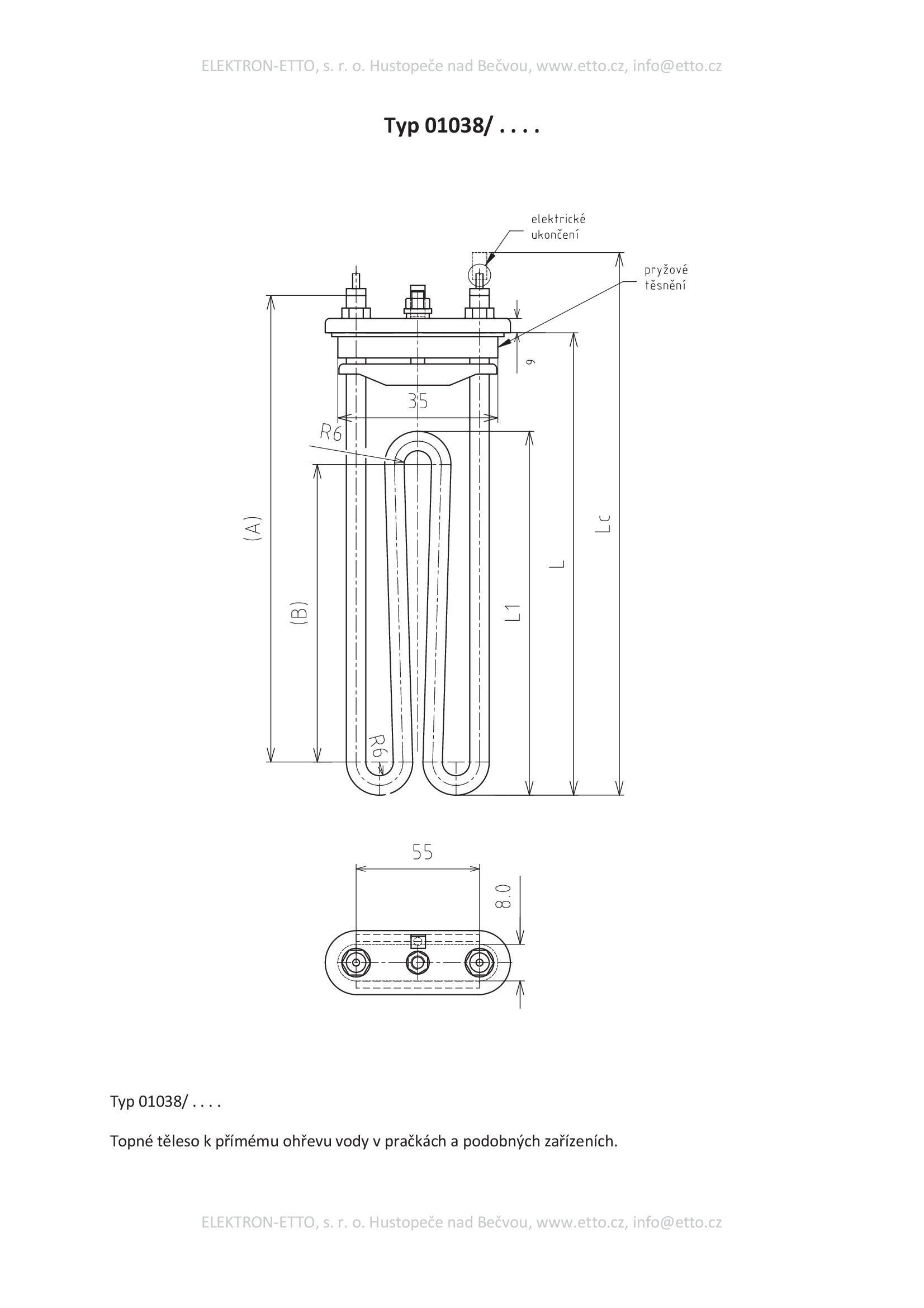

Type 01038

Type 01038

Heating element for direct water heating in washing machines and similar appliances.

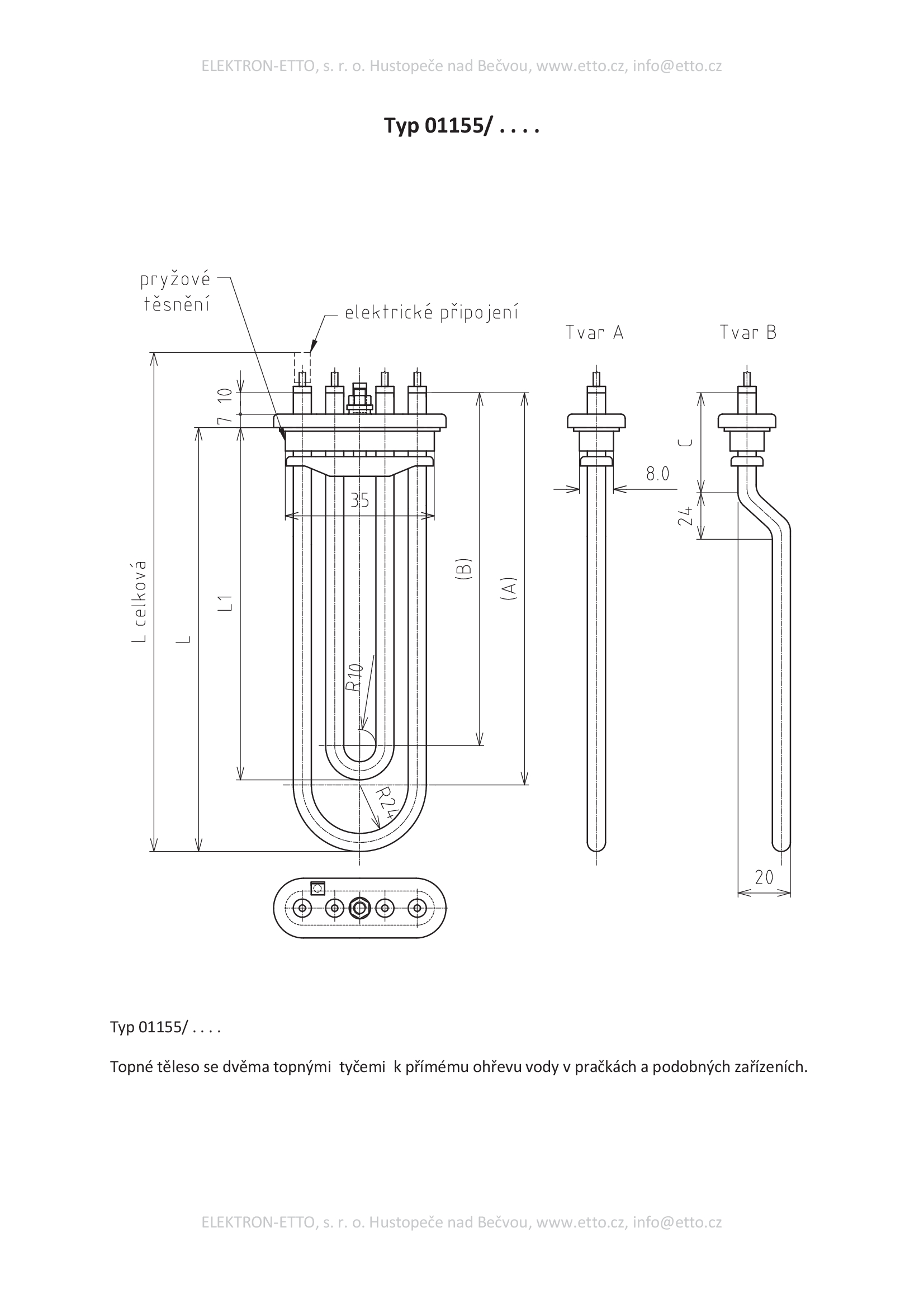

Type 01155

Type 01155

Heating element with two heating rods for direct water heating in washing machines and similar appliances.

Type 01201

Type 01201

Heating element for direct water heating in dishwashers.

Version 0010 is available for immediate sale from stock.

Versions table (Type 01201/. . . 0)
Version U [V] P [W] L sensor pocket Ø rod note
0010 230 3x2000 326 ne 6,5
0011 230 3x2000 326 ne 8,5
0020 230 3x1333 326 ne 6,5
0030 400 3x3000 440 ne 6,5
0040 230 3x1333 326 ano 6,5
0050 230 3x2000 326 ano 6,5
0090 230 3x4000 600 ano 8,5
0012 230 3x2000 326 ne 6,5
0014 230 3x2000 440 ne 8,5
0013 230 3x2000 326 ne 8,5 Y connection

Heating elements for heating oils and fuels

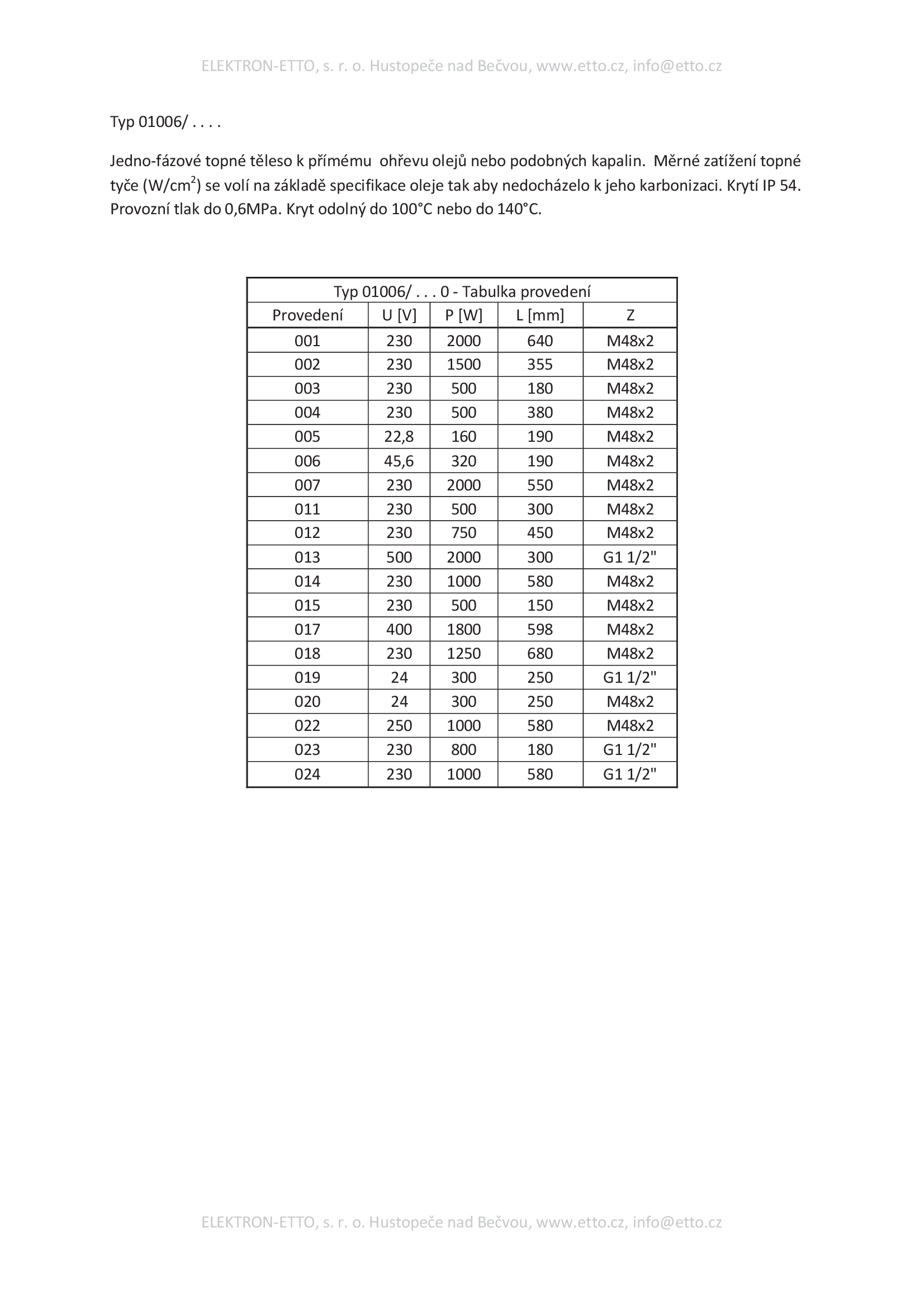

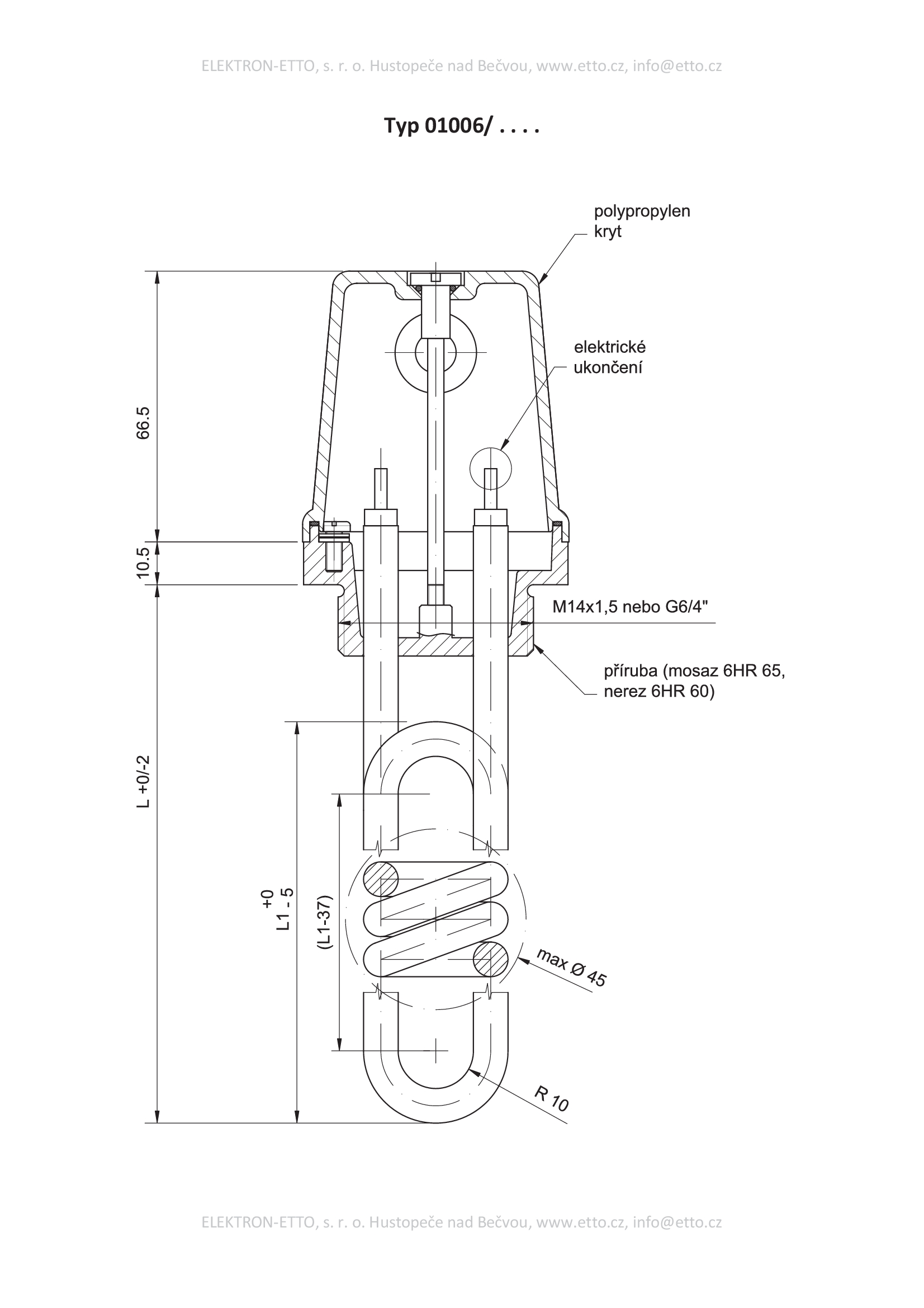

Type 01006

Type 01006

Single-phase heating element for direct heating of oils or similar liquids. The watt density of the heating rod (W/cm²) is selected based on the oil specification so that no carbonisation occurs. IP 54 protection. Operating pressure up to 0.6 MPa. Cover resistant up to 100 °C or up to 140 °C.

Versions table (Type 01006/. . . 0)
Version U [V] P [W] L [mm] Z
001 230 2000 640 M48x2
002 230 1500 355 M48x2
003 230 500 180 M48x2
004 230 500 380 M48x2
005 22,8 160 190 M48x2
006 45,6 320 190 M48x2
007 230 2000 550 M48x2
011 230 500 300 M48x2
012 230 750 450 M48x2
013 500 2000 300 G1 1/2"
014 230 1000 580 M48x2
015 230 500 150 M48x2
017 400 1800 598 M48x2
018 230 1250 680 M48x2
019 24 300 250 G1 1/2"
020 24 300 250 M48x2
022 250 1000 580 M48x2
023 230 800 180 G1 1/2"
024 230 1000 580 G1 1/2"

Type 01016

Type 01016

Heating element for direct heating of liquids with an aluminium cover for greater mechanical and thermal resistance. IP 54 protection. Maximum operating pressure 1 MPa. The flange is fitted with a hexagonal SW 50.

Versions table (Type 01016/. . . 0)
Version U [V] P [W] L L1 Z rod material
101 400V/230 9000 800 801,5 M48x2 Cu
001 230/400V 4500 1000 1001,5 G1 1/2" AISI 316L
002 230/400V 4500 945 944,5 G1 1/2" AISI 321
003 230/400V 4000 345 346,5 M48x2 Cu
004 230/400V 3000 390 391,5 G1 1/2" AISI 316L
005 230/400V 3000 425 426,5 G1 1/2" AISI 321
006 230/400V 3000 425 426,5 G1 1/2" Incoloy 800
007 230/400V 2800 390 391,5 G1 1/2" AISI 321
008 230/400V 2800 390 391,5 G1 1/2" Incoloy 800
009 230/400V 3000 800 801,5 M48x2 AISI 304
0010 230/400V 6000 440 441,5 G1 1/2" AISI 321
011 230/400V 3500 450 451,5 M48x2 AISI 321
012 230/400V 3000 315 316,5 G1 1/2" AISI 316L
013 230/400V 3000 230 231,5 G1 1/2" AISI 316L
014 230/400V 9000 620 621,5 G1 1/2" AISI 316L
015 400V/230 4000 1240 1241,5 G1 1/2" AISI 321
016 230/400V 2000 895 896,5 M48x2 AISI 321
017 230/400V 2667 985 986,5 M48x2 AISI 321
018 230/400V 1500 270 271,5 G1 1/2" AISI 304
020 400V/230 4500 1150 1146,5 G1 1/2" AISI 304

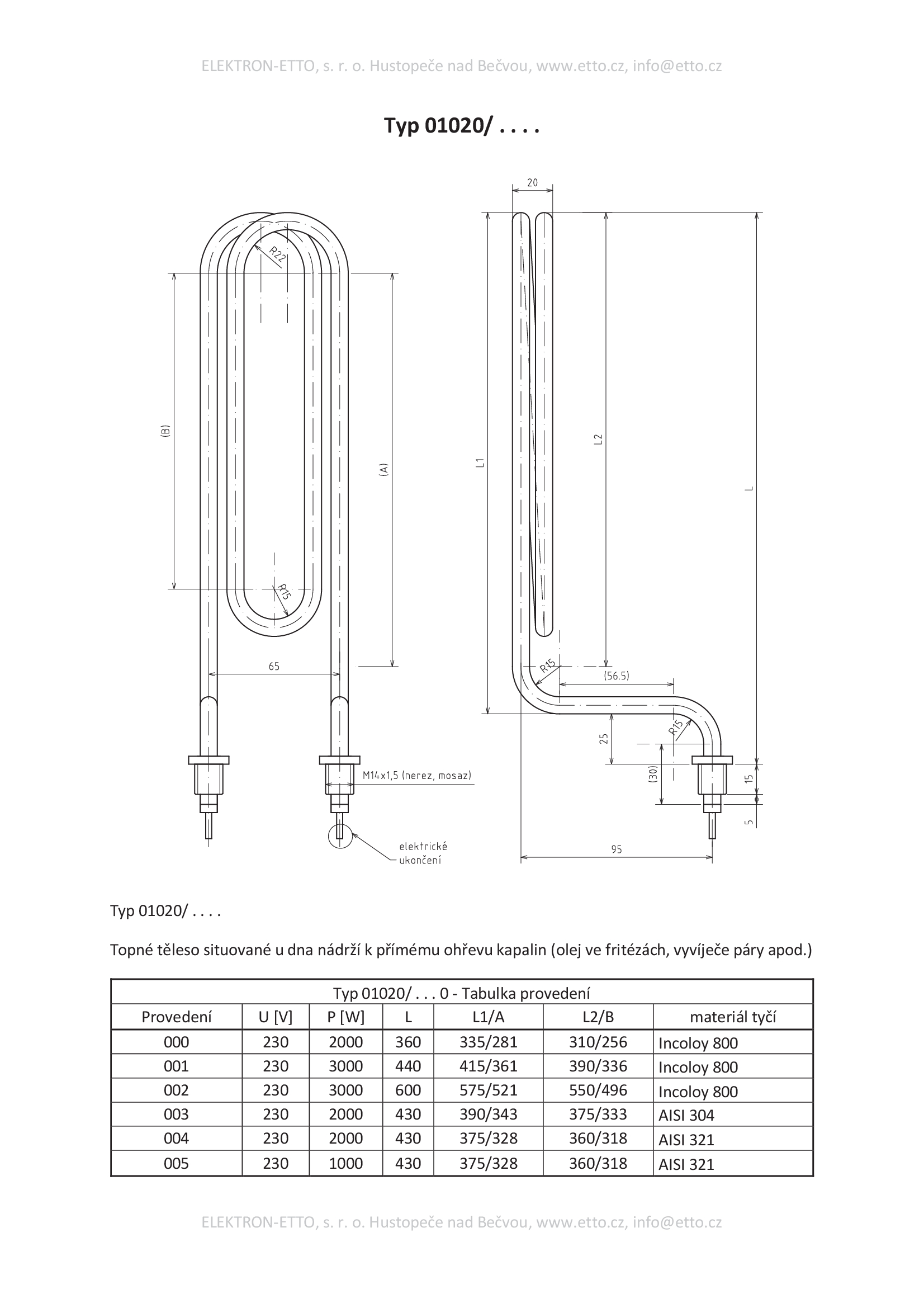

Type 01020

Type 01020

Heating element located at the bottom of tanks for direct heating of liquids (oil in fryers, steam generators etc.).

Versions table (Type 01020/. . . 0)
Version U [V] P [W] L L1/A L2/B rod material
000 230 2000 360 335/281 310/256 Incoloy 800
001 230 3000 440 415/361 390/336 Incoloy 800
002 230 3000 600 575/521 550/496 Incoloy 800
003 230 2000 430 390/343 375/333 AISI 304
004 230 2000 430 375/328 360/318 AISI 321
005 230 1000 430 375/328 360/318 AISI 321

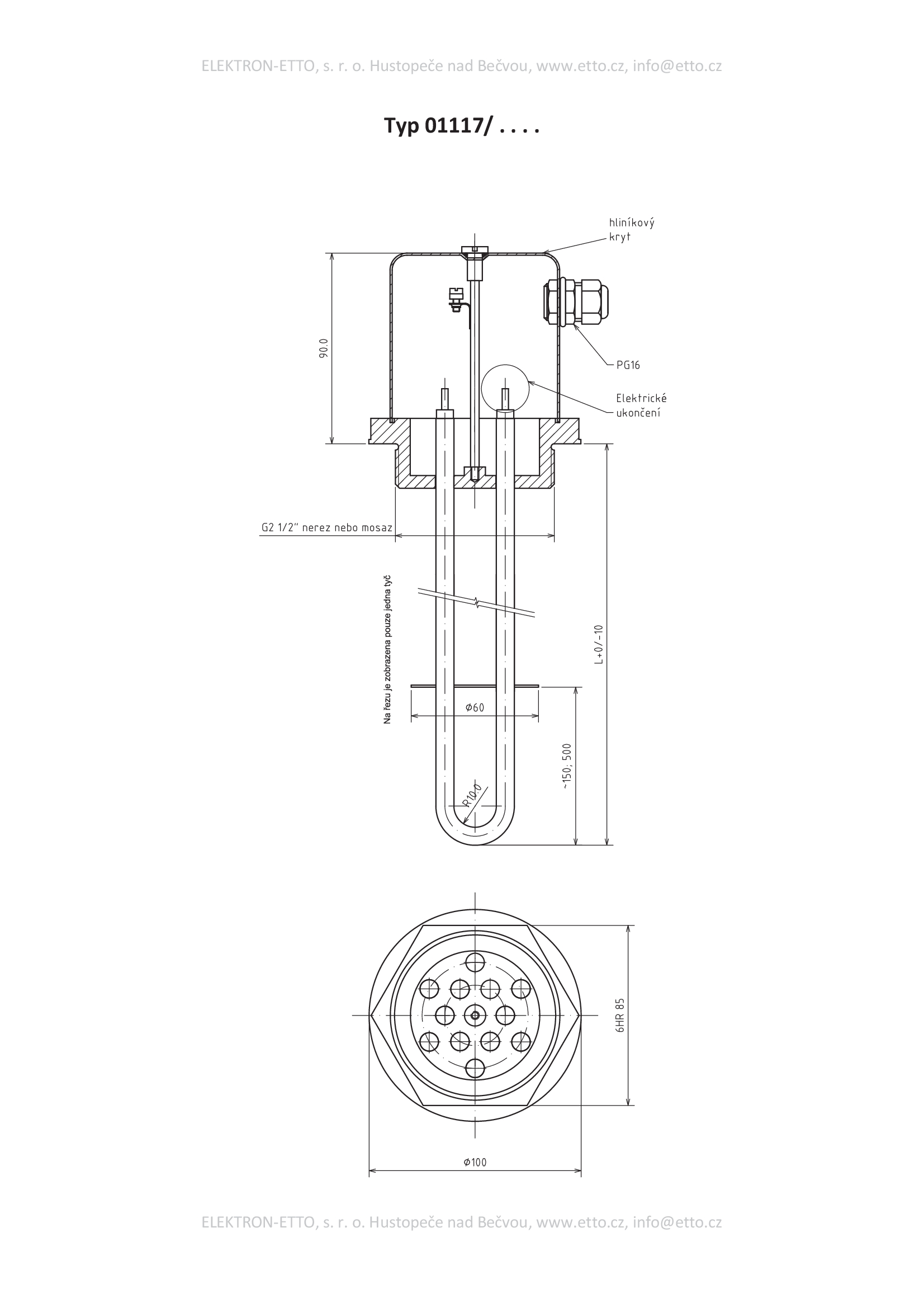

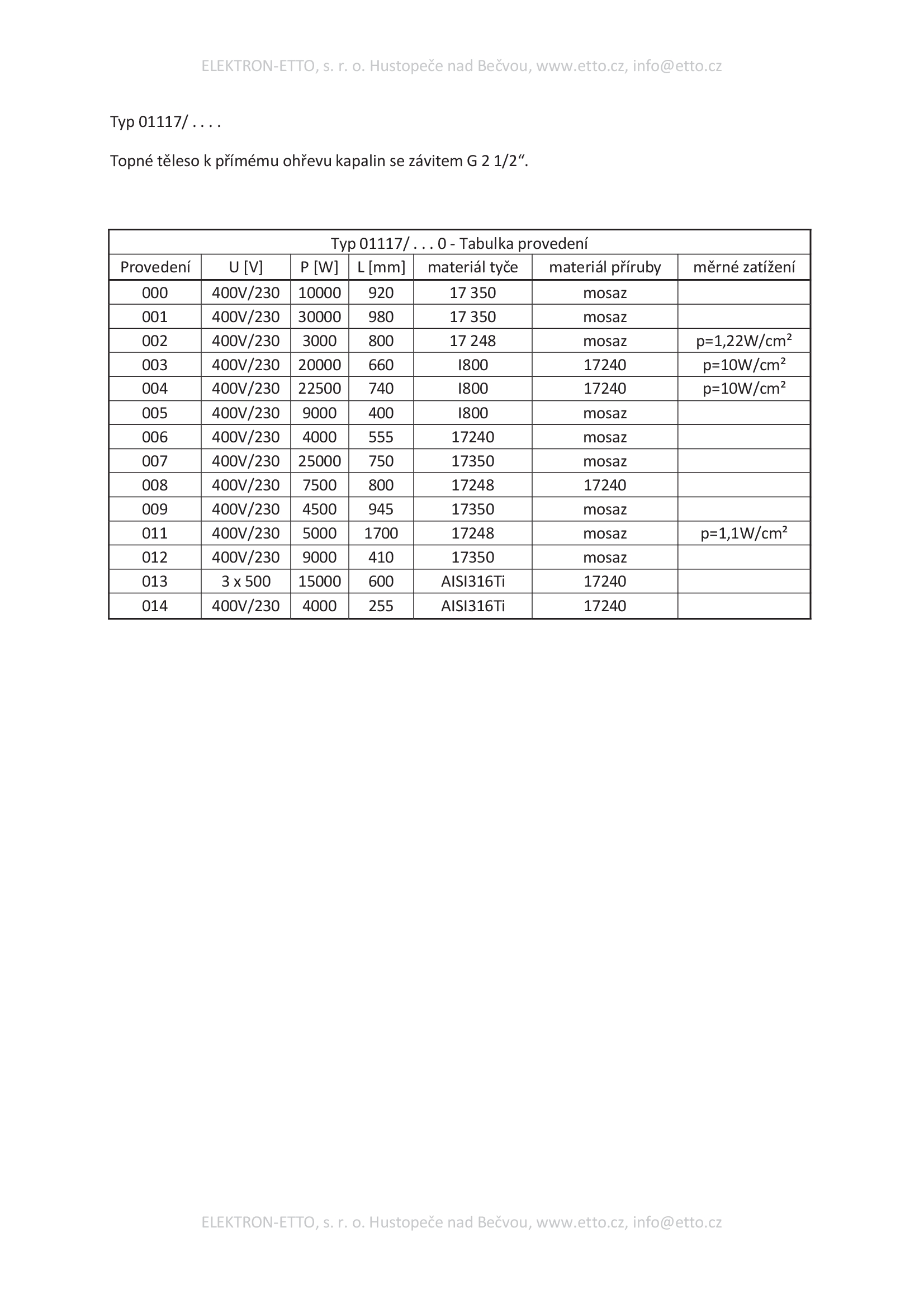

Type 01117

Type 01117

Heating element for direct heating of liquids with G 2 1/2" thread.

Versions table (Type 01117/. . . 0)
Version U [V] P [W] L [mm] rod material flange material watt density
000 400V/230 10000 920 17 350 brass
001 400V/230 30000 980 17 350 brass
002 400V/230 3000 800 17 248 brass p=1,22 W/cm²
003 400V/230 20000 660 I800 17240 p=10 W/cm²
004 400V/230 22500 740 I800 17240 p=10 W/cm²
005 400V/230 9000 400 I800 brass
006 400V/230 4000 555 17240 brass
007 400V/230 25000 750 17350 brass
008 400V/230 7500 800 17248 17240
009 400V/230 4500 945 17350 brass
011 400V/230 5000 1700 17248 brass p=1,1 W/cm²
012 400V/230 9000 410 17350 brass
013 3 x 500 15000 600 AISI316Ti 17240
014 400V/230 4000 255 AISI316Ti 17240

Type 01248

Type 01248

Three-phase heating element for direct heating of oils or similar liquids. The watt density of the heating rod (W/cm²) is selected based on the oil specification (e.g. SAE) so that no carbonisation occurs. IP 42 protection. Operating pressure depending on the flange up to 0.6 MPa, 1 MPa or 2.5 MPa.

Versions table (Type 01248/. . . 0)
Version U [V] P [W] L [mm] Jt [MPa] p [W/cm²] note no. of holes
001 400V/230 2500 400 0,6 0,96 6x Ø11
002 400V/230 3500 400 0,6 1,35 6x Ø11
003 400V/230 5500 800 0,6 1,0 6x Ø11
004 400V/230 4000 600 0,6 0,98 6x Ø11
005 400V/230 12000 1250 0,6 1,34 6x Ø11
006 400V/230 10000 950 0,6 1,86 6x Ø11
007 400V/230 7500 400 0,6 3,0 6x Ø11
008 400V/230 15000 800 0,6 2,8 6x Ø11
009 400V/230 6000 700 0,6 1,24 6x Ø11
010 400V/230 2660 400 0,6 1,02 6x Ø11
012 400V/230 3500 520 0,6 1,0 6x Ø11
013 400V/230 30000 1250 0,6 3,4 flange and cover stainless 6x Ø11
014 3 x 500 6000 700 1,0 1,24 8x Ø14

Heating elements for special applications (honey, indirect heating, molds)

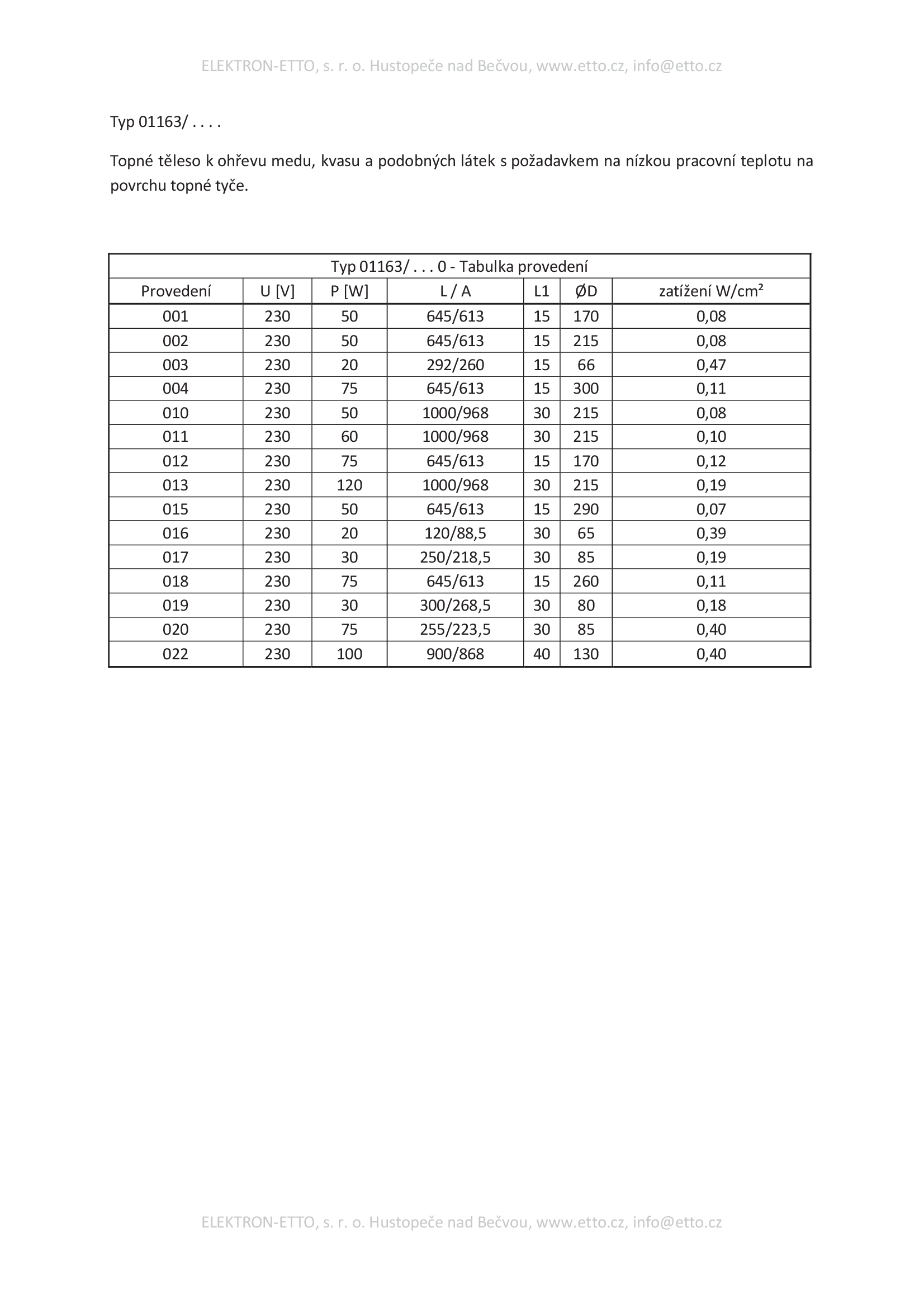

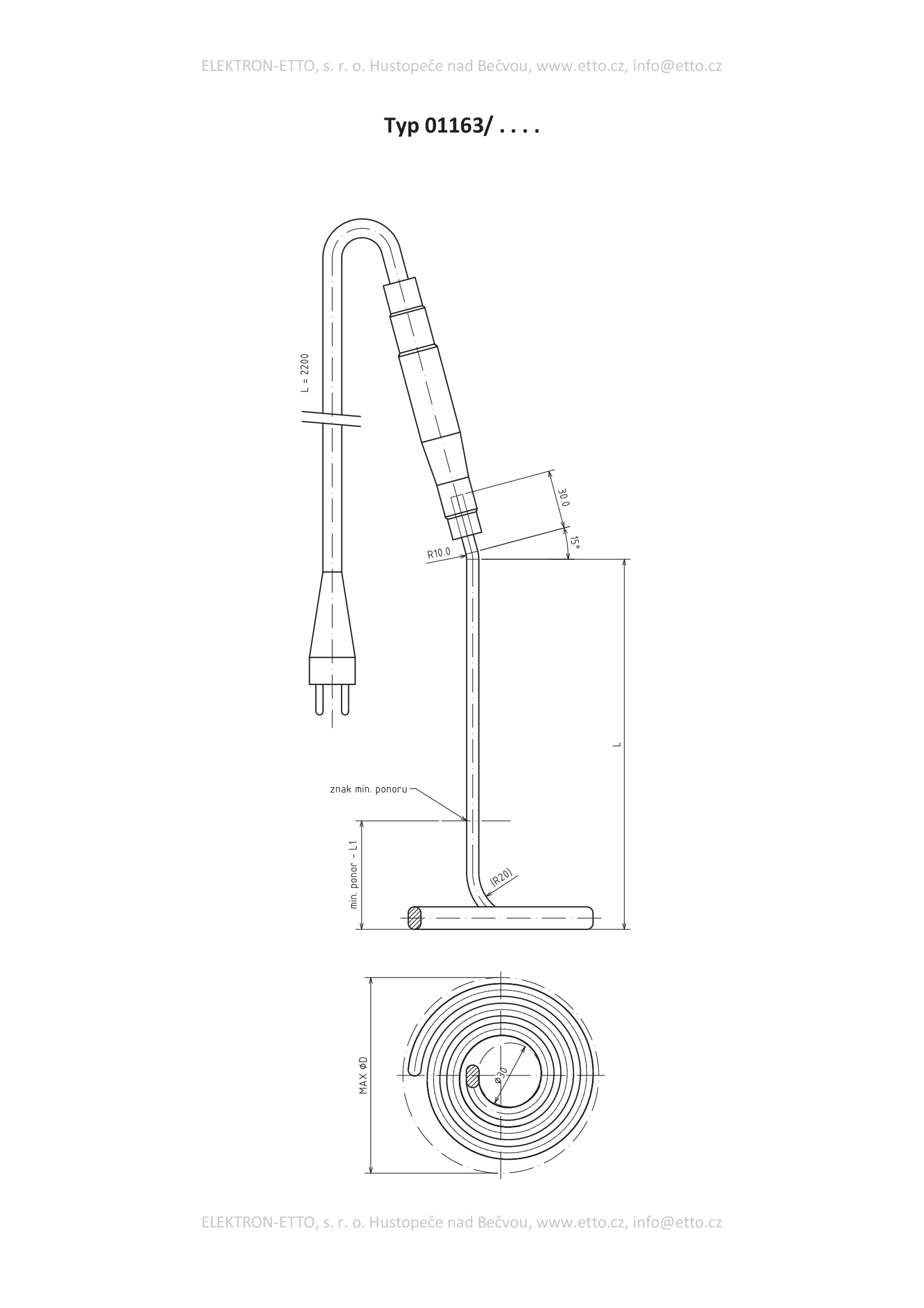

Type 01163

Type 01163

Heating element for heating honey, mash and similar substances with a requirement for low working temperature on the surface of the heating rod.

Versions table (Type 01163/. . . 0)
Version U [V] P [W] L / A L1 ØD p [W/cm²]
001 230 50 645/613 15 170 0,08
002 230 50 645/613 15 215 0,08
003 230 20 292/260 15 66 0,47
004 230 75 645/613 15 300 0,11
010 230 50 1000/968 30 215 0,08
011 230 60 1000/968 30 215 0,10
012 230 75 645/613 15 170 0,12
013 230 120 1000/968 30 215 0,19
015 230 50 645/613 15 290 0,07
016 230 20 120/88,5 30 65 0,39
017 230 30 250/218,5 30 85 0,19
018 230 75 645/613 15 260 0,11
019 230 30 300/268,5 30 80 0,18
020 230 75 255/223,5 30 85 0,40
022 230 100 900/868 40 130 0,40

Type 05300

Type 05300

Ceramic heating element for indirect heating of liquids in boilers, electroplating baths etc. Manufactured in single-phase or three-phase version depending on the element power. Usually placed horizontally in a metal, glass or porcelain tube according to the type of liquid being heated. Diameters other than those shown in the figure are also possible.

Versions table (Type 05300/. . . 0)
Version U [V] P [W] D Ltop Lc
001 230 7000 48,5 850 900
002 400 3000 48,5 550 600
003 400 4000 48,5 850 900
005 400/230V 5000 48,5 2155 2270
006 230 6000 48,5 907 960
007 400/230V 7500 48,5 1930 1980
008 400/230V 7000 48,5 910 960
010 230 2400 48 300 350
012 400 6000 45 880 930
015 230 2000 48 300 350
017 230 2200 48 250 300
019 230 3300 48,5 570 620
026 230 3000 45 440 495
027 230 1700 45 550 600
028 400 4000 45 880 930
032 230 2600 48,5 453 505
033 230 4000 48,5 740 790
034 230 2000 48,5 400 450

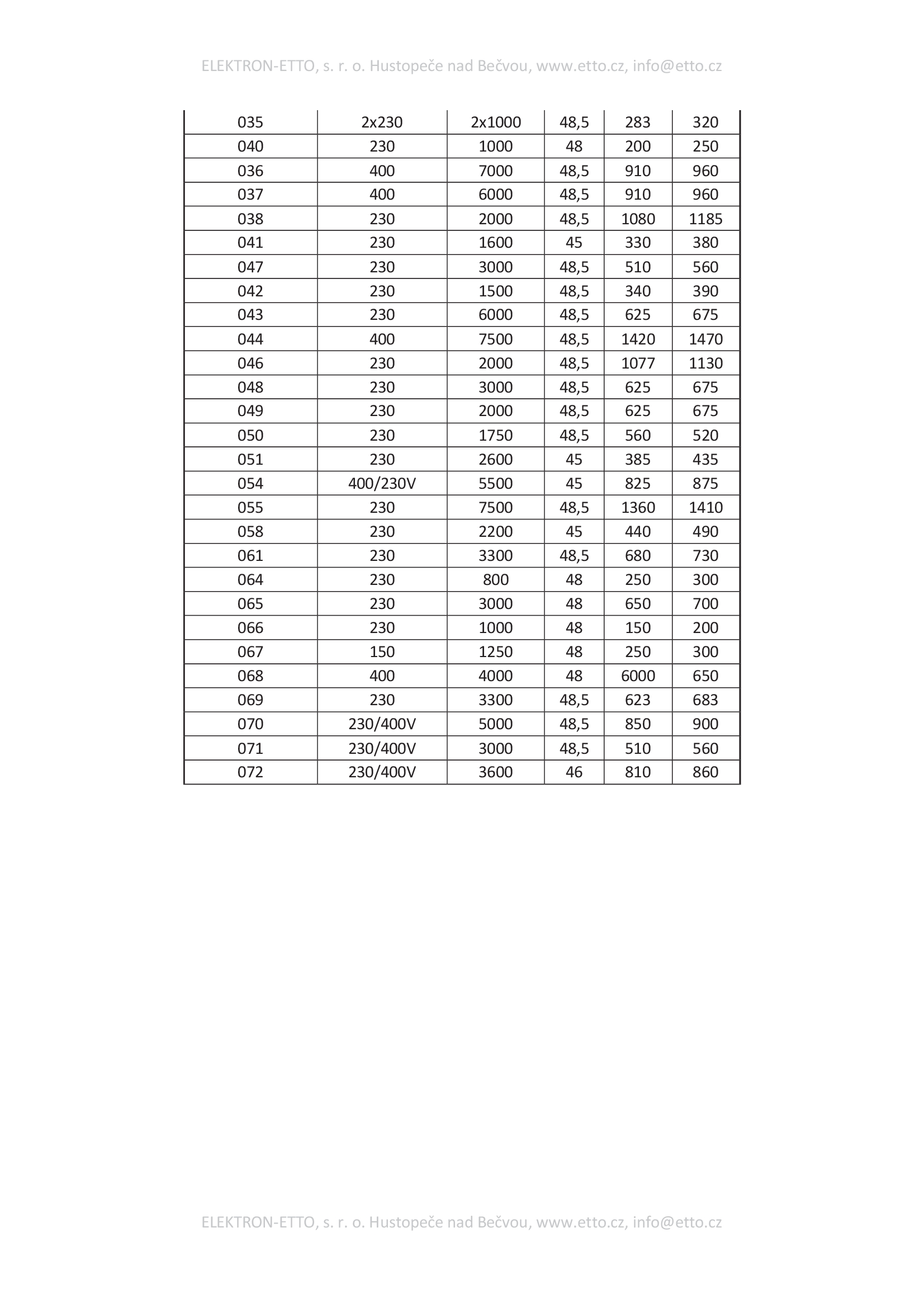

035 2x230 2x1000 48,5 283 320
040 230 1000 48 200 250
036 400 7000 48,5 910 960
037 400 6000 48,5 910 960
038 230 2000 48,5 1080 1185
041 230 1600 45 330 380
047 230 3000 48,5 510 560
042 230 1500 48,5 340 390
043 230 6000 48,5 625 675
044 400 7500 48,5 1420 1470
046 230 2000 48,5 1077 1130
048 230 3000 48,5 625 675
049 230 2000 48,5 625 675
050 230 1750 48,5 560 520
051 230 2600 45 385 435
054 400/230V 5500 45 825 875
055 230 7500 48,5 1360 1410
058 230 2200 45 440 490
061 230 3300 48,5 680 730
064 230 800 48 250 300
065 230 3000 48 650 700
066 230 1000 48 150 200
067 150 1250 48 250 300
068 400 4000 48 6000 650
069 230 3300 48,5 623 683
070 230/400V 5000 48,5 850 900
071 230/400V 3000 48,5 510 560
072 230/400V 3600 46 810 860

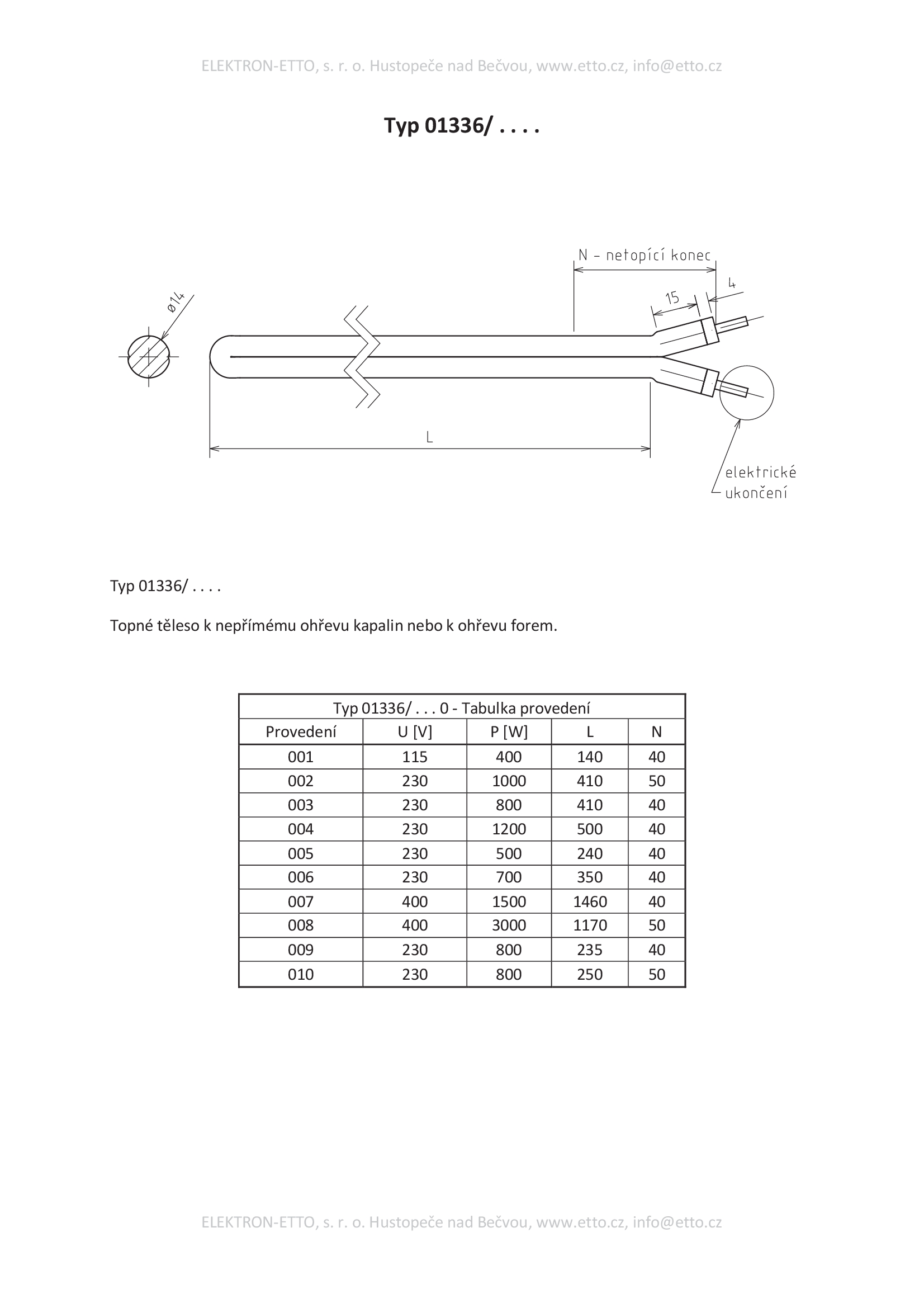

Type 01336

Type 01336

Heating element for indirect heating of liquids or for heating molds.

Versions table (Type 01336/. . . 0)
Version U [V] P [W] L N
001 115 400 140 40
002 230 1000 410 50
003 230 800 410 40
004 230 1200 500 40
005 230 500 240 40
006 230 700 350 40
007 400 1500 1460 40
008 400 3000 1170 50
009 230 800 235 40
010 230 800 250 50

Additional drawings

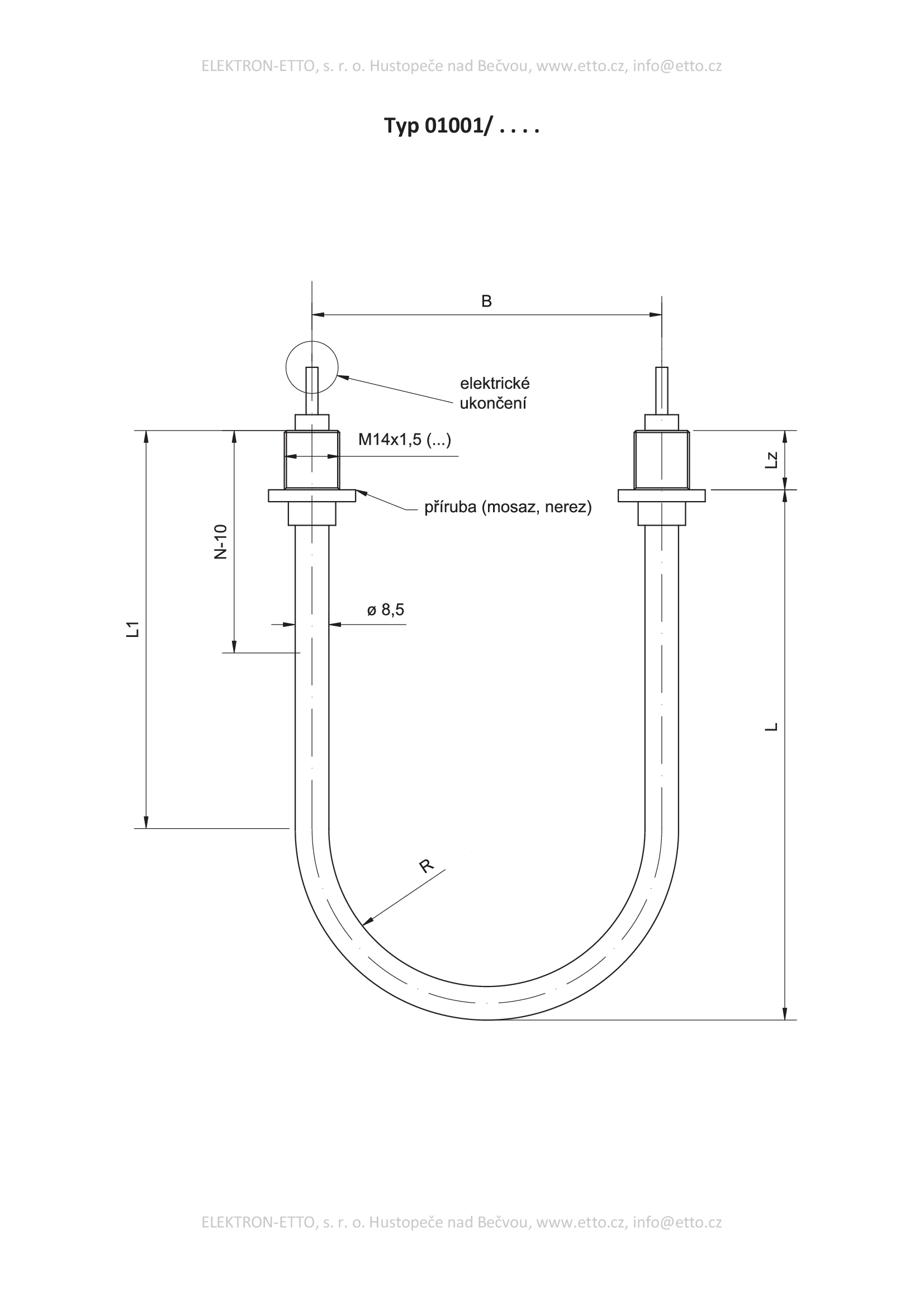

Type 01001

Type 01001

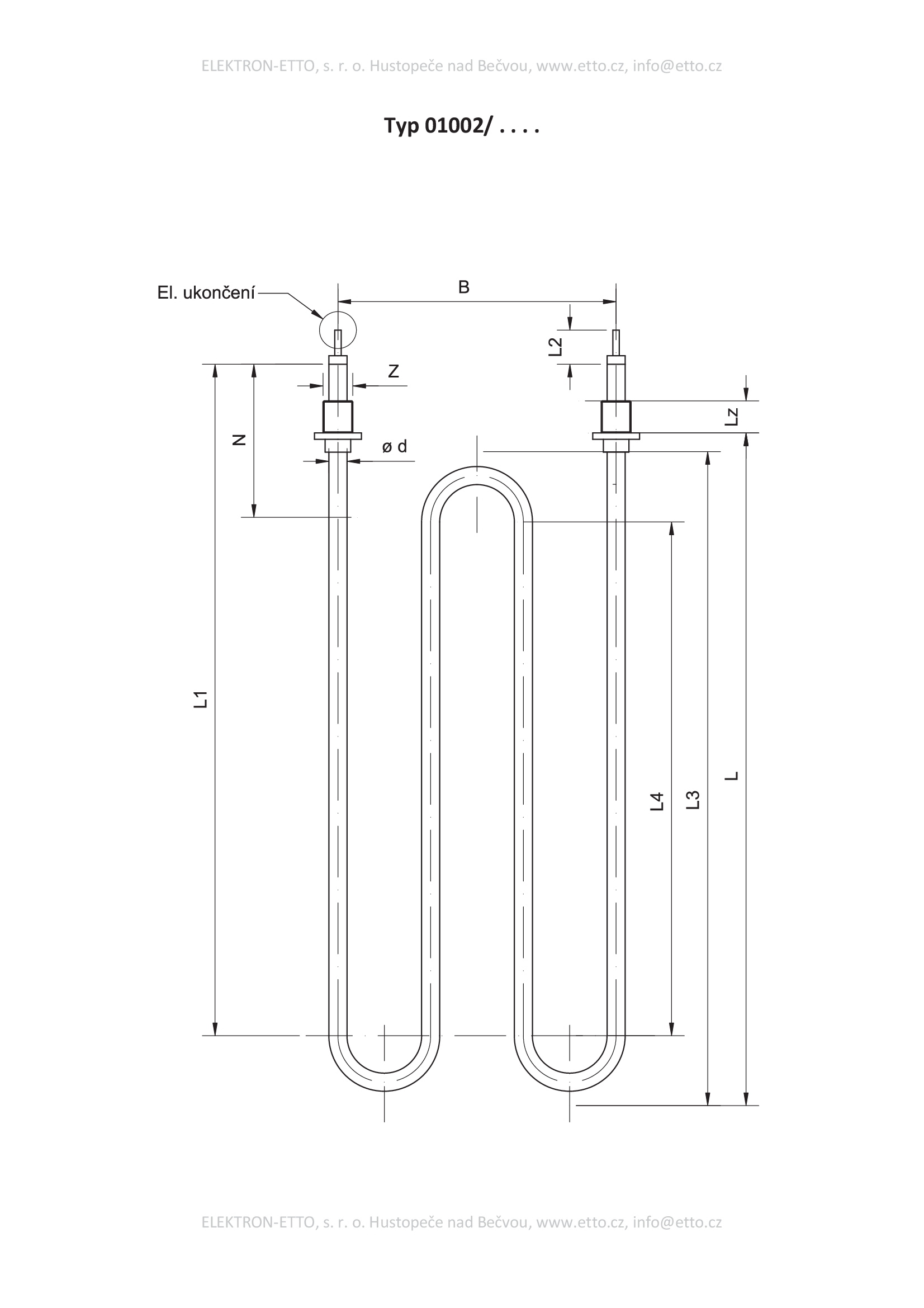

Type 01002

Type 01002

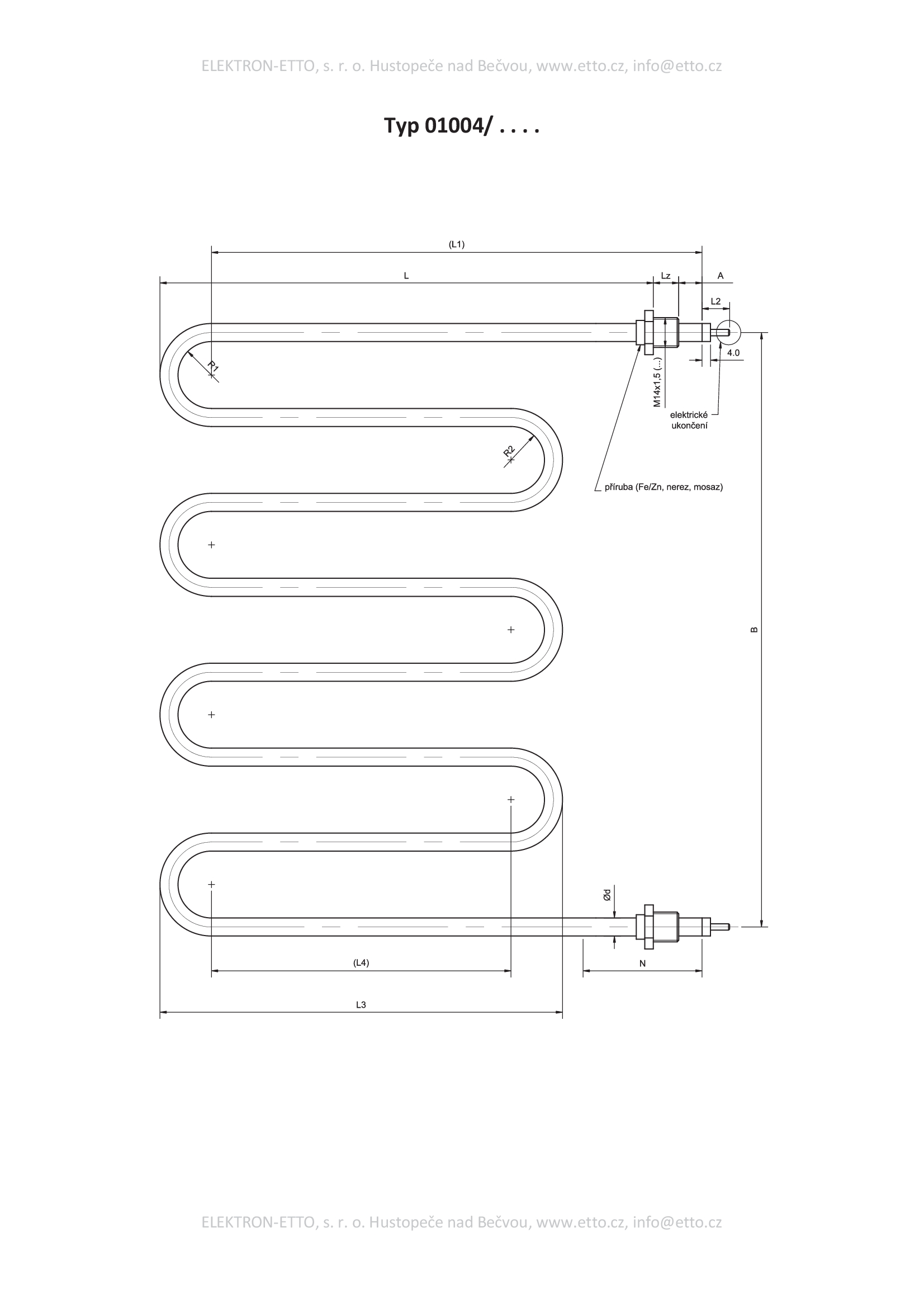

Type 01004

Type 01004

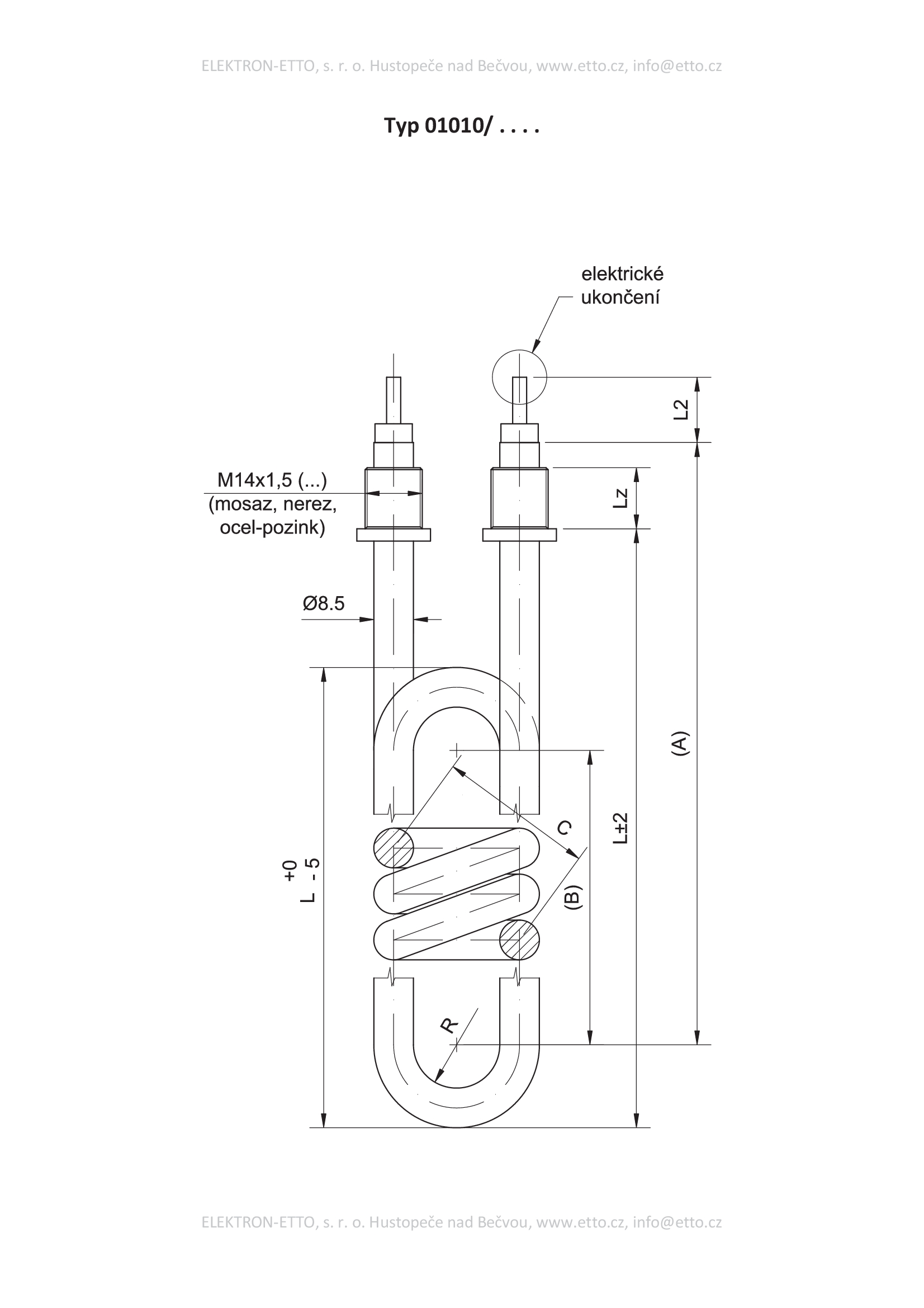

Type 01010

Type 01010

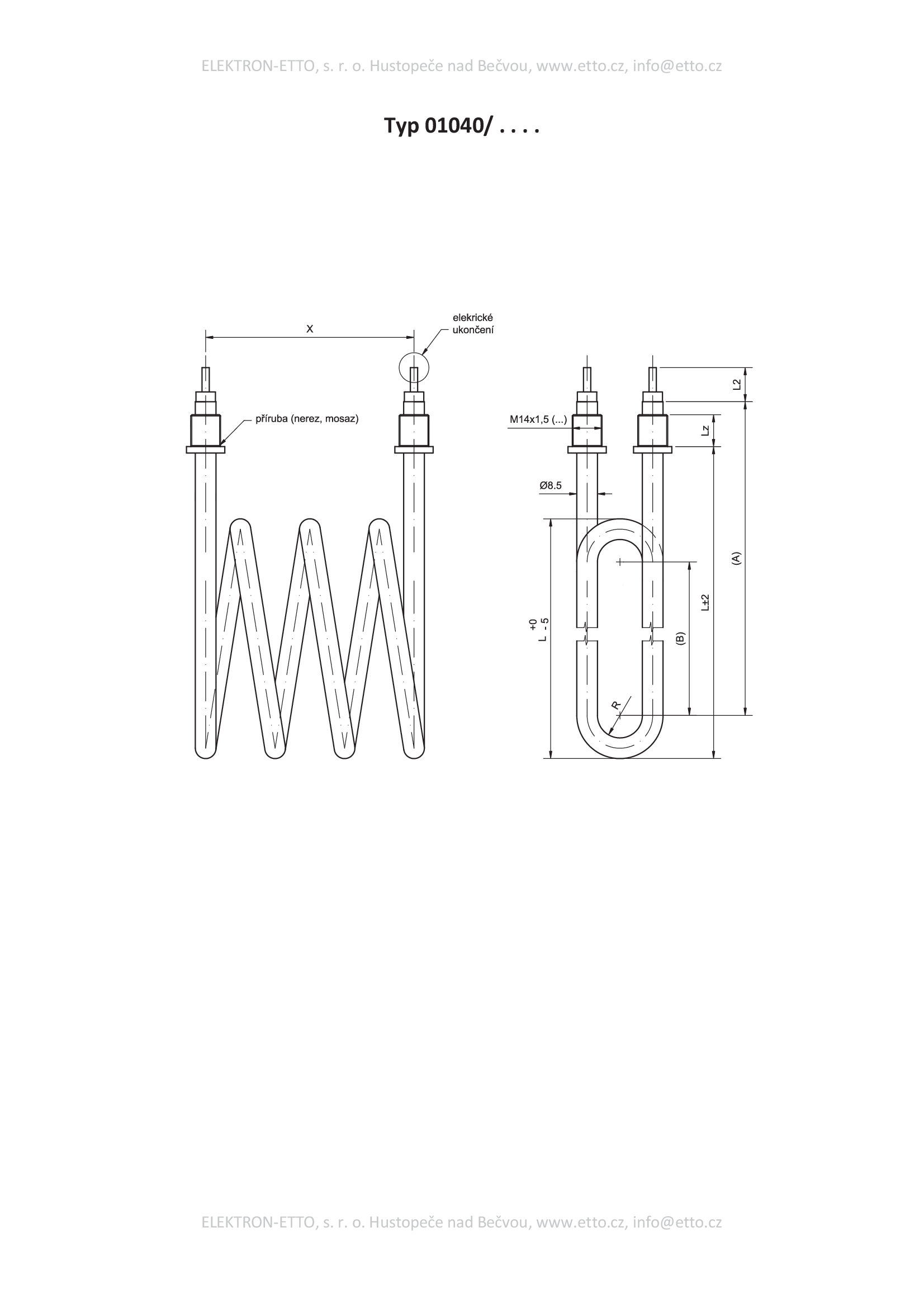

Type 01040

Type 01040

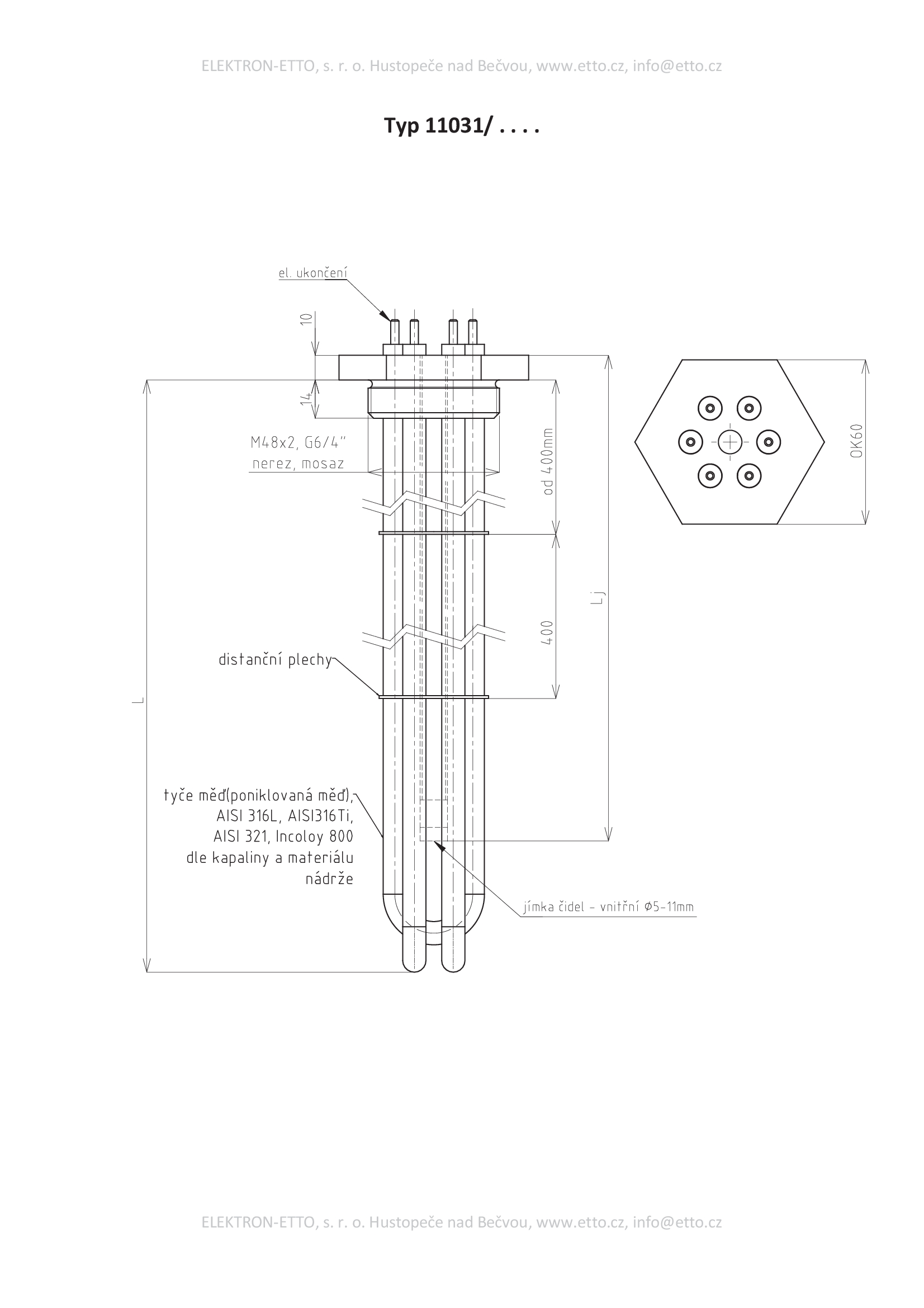

Type 11031

Type 11031

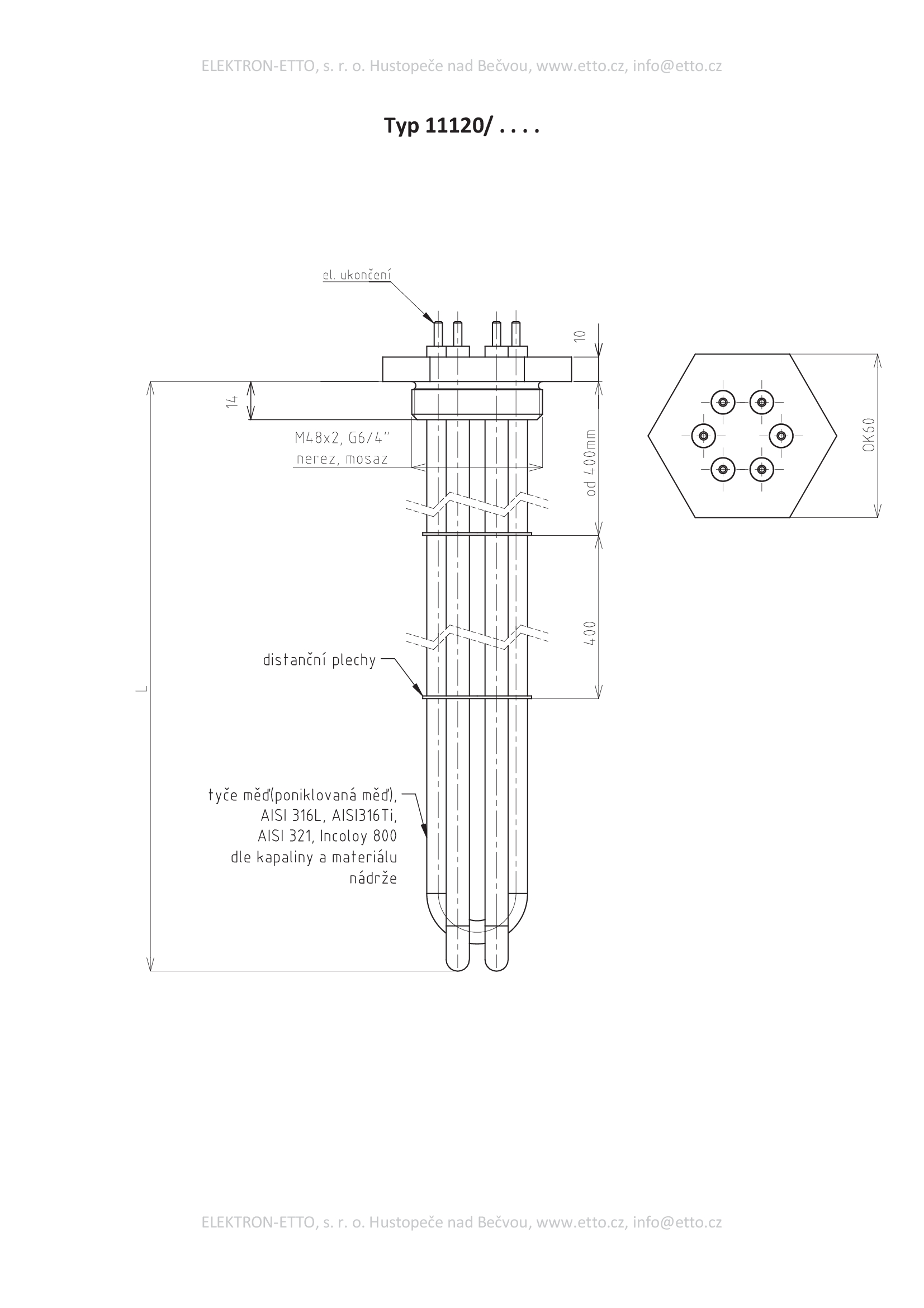

Type 11120

Type 11120


+420 581 626 366 info@etto.cz
CZ SK EN DE HU PL
